AuSome™ Single Size 38nm Gold Particles Standard

AuSome™ Single Size 38±4nm

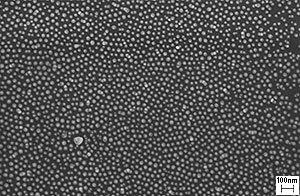

The single particle AuSome™ resolution and calibration standard with 38±4nm gold particles provide an easy way of checking resolution at high magnification. The 38nm test standards tend to have a higher density, suitable for SEM and FESEM. AuSome™ provides a continuous monolayer of gold nanoparticles with uniform particle size and inter-particles spacing over the majority of the substrate with a higher density at the edges and corner. Silicon substrate size is 5x5mm with a thickness of 0.5mm. (#16008) Unmounted or provided on an SEM specimen mount. See mount selection A-Q
