碳复型格栅标样674

SEM Grating Replica, 500nm, Unmounted

大客户经理
销售经理

咨询热线：0755-23003036

产品咨询

产品详情

waffle grating replica

500nm SEM Cross Line Grating Replica

500nm cross line grating carbon replica (waffle pattern) with Au/Pd shadowing. Replica is mounted on a 400 mesh copper TEM grid with a diameter of 3mm. This cross line replica has well-defined trench type grooves, which makes it easy to determine the 500nm pitch or the 2,000 lines per millimeter. Available as unmounted standard or mounted on a SEM mount. See information on mounts A-R.

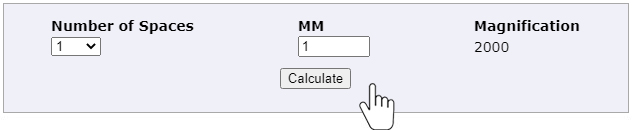

Use our online magnification calculator for quick assistance in obtaining magnification based on space counts of this product:

Magnification Calibration Calculator

Manufactured in USA

Prod #	Description	Unit
674	SEM Grating Replica, 500nm, Unmounted	each
674-A	SEM Grating Replica, 500nm, Mount A	each
674-B	SEM Grating Replica, 500nm, Mount B	each
674-C	SEM Grating Replica, 500nm, Mount C	each
674-D	SEM Grating Replica, 500nm, Mount D	each
674-E	SEM Grating Replica, 500nm, Mount E	each
674-F	SEM Grating Replica, 500nm, Mount F	each
674-G	SEM Grating Replica, 500nm, Mount G, You Supply Mount	each
674-K	SEM Grating Replica, 500nm, Mount K	each
674-L	SEM Grating Replica, 500nm, Mount L	each
674-M	SEM Grating Replica, 500nm, Mount M	each
674-O	SEM Grating Replica, 500nm, Mount O	each
674-P	SEM Grating Replica, 500nm, Mount P	each
674-Q	SEM Grating Replica, 500nm, Mount Q	each
674-R	SEM Grating Replica, 500nm, Mount R	each
