反射型刻度载物片标样2280-27

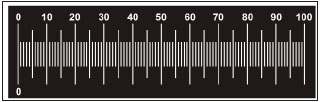

Micrometer Scale for Reflected Light, 10mm in 0.1mm divisions

大客户经理
销售经理

咨询热线：0755-23003036

产品咨询

产品详情

Stage Micrometers for Reflected Light

Micrometer Scale for Reflective Light

Horizontal Scale

Micrometer for Reflective Light

Mounted in a black, stainless steel slide

These accurate scales are etched through a highly reflective vacuum coated metal. When viewed with reflected light illumination, as with a metallurgical microscope, the scales appear bright against a black background. If you need a certified stage micormeter, please go to Pro Series Stage Micrometers for Reflected Light.
Table of Accuracy

Prod #	Description	Unit
2280-27	Micrometer Scale for Reflected Light, 10mm in 0.1mm divisions	each
2269-10	Micrometer Scale for Reflected Light, 1mm in 0.01mm divisions	each
2280-28	Micrometer Scale for Reflected Light, 0.1 inch in 0.001 inch divisions	each

Line Width and Accuracy of Stage Micrometers

Product #	Line Width	Accuracy (overall)
2280-10	0.005 mm	within 0.002mm
2280-11	0.005 mm	within 0.0015mm
2280-12	0.002 mm	within 0.0001 inch
2280-13	0.002 mm	within 0.001mm
2280-14	0.001 mm	within 0.00005 inch
2280-15	0.001 mm	within 0.001mm
2280-16	0.0015 mm	within 0.001mm
2280-17	0.0025 mm	within 0.0015mm
2280-18	0.0027 mm	within 0.001mm
2280-24	0.002 mm	within 0.001mm
2269-10	0.003 mm	within 0.001mm
2280-25	0.0025mm	within 0.0015mm
2280-27	0.005mm	within 0.002mm
2280-28	0.002mm	within 0.0001 inch
2280-30	0.005mm	within 0.0015mm
2280-31	0.004mm	within 0.0015mm
2280-32	0.004mm	within 0.0015mm
2280-33	0.0025mm	within 0.0015mm
