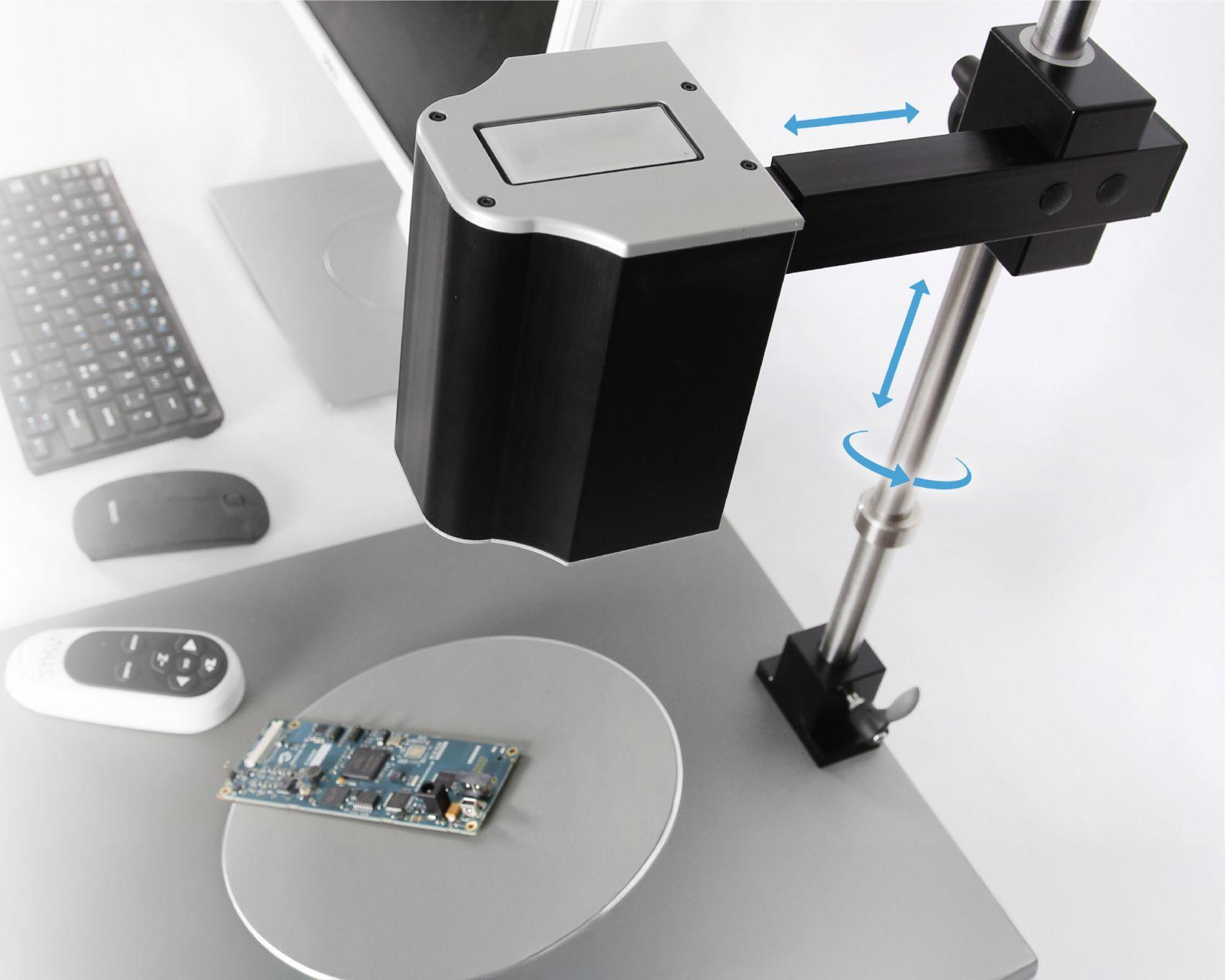

TEK-FLEX-XY is a full high-definition desk optical inspection system with a telescopic arm for precise XY positioning and an adjustable Z-axis height from 310mm to 60mm. The camera provides optical magnification of 46x (27" monitor) and digital magnification up to 140x (27" monitor)*. ESD safe and equipped with both manual focus and impressively fast autofocus, TEK-FLEX-XY delivers high-quality, distortion-free 1080p FHD images with excellent depth of field and no delay.

The large 310 mm working distance enables inspection of a wide variety of objects. TEK-FLEX-XY has to be connected to a monitor.**

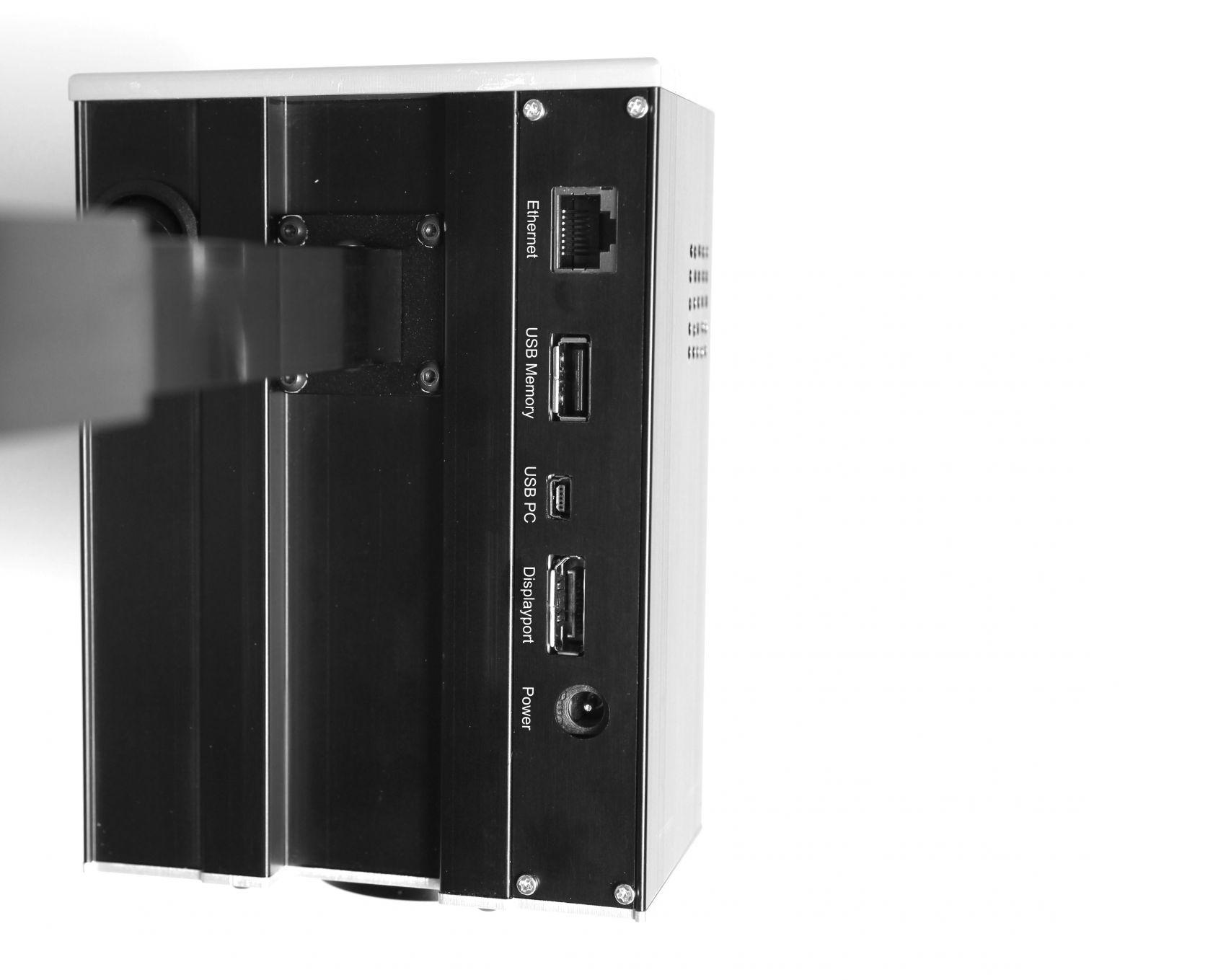

DisplayPort Output: Live-streaming images on your Monitor (FHD 1920x1080)
Use the remote control to zoom in and out, turn auto focus on or off, fine tune your focus, and much more all with a touch of a button. Simply connect the DisplayPort cable and run.
Save your images directly on USB stick
Snap shot mode. No computer needed. Just connect a USB stick to your TEK-FLEX and press MODE button for few seconds on the remote.
USB Output: Live-streaming images on your PC (FHD 1920x1080)
Use the software toolbar to draw, take measurements, make image comparison and more. The software is preinstalled on the included USB flash drive or you can download the latest version on our website (DOWNLOAD section). No drivers, no product keys necessary, simply install and run.
Ethernet Connection
Ethernet connection enables simultaneous screen sharing using the same IP address.

MAIN TEK-FLEX-XY ADVANTAGES

• Less physical stress than binocular microscopes
• User friendly system

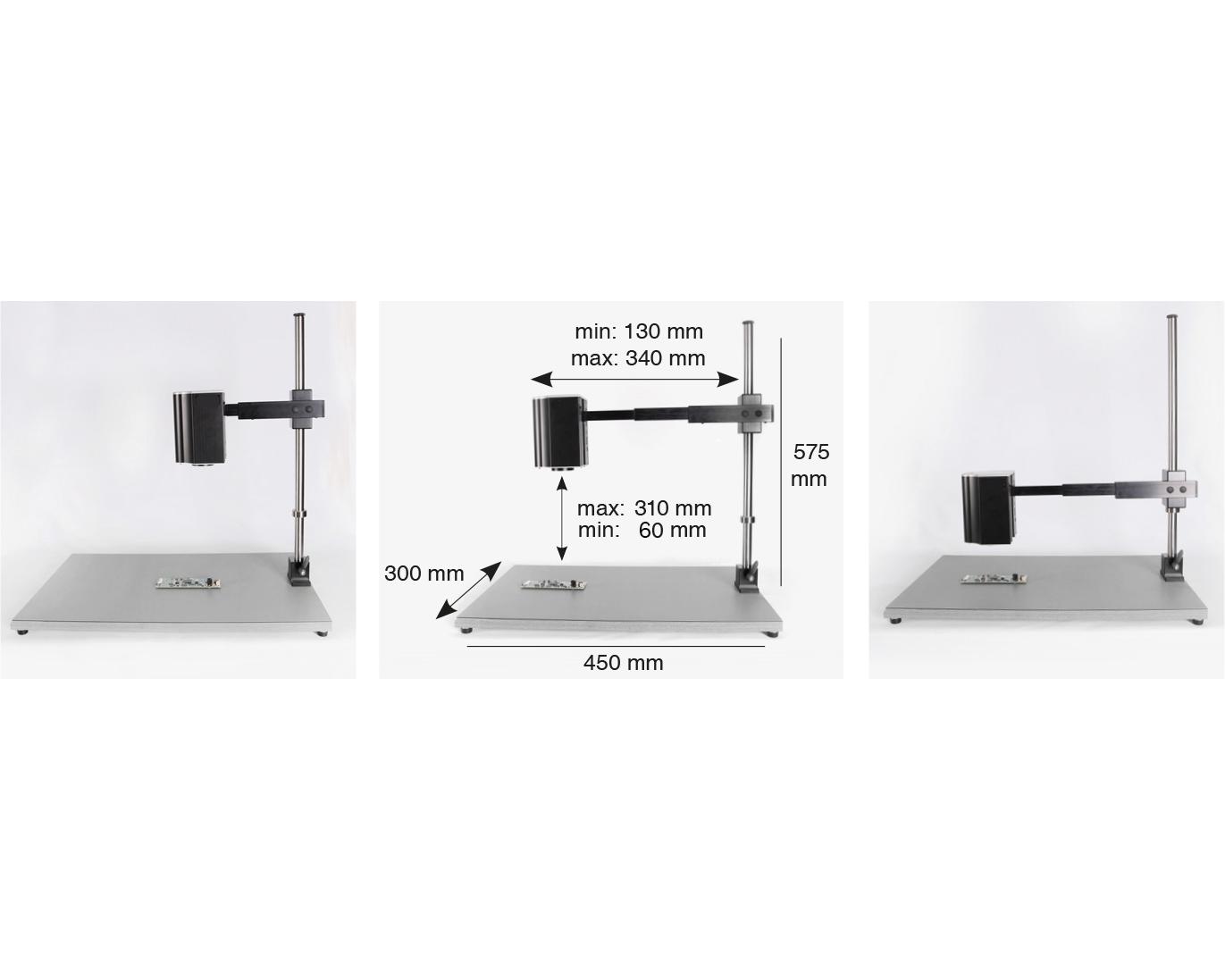

• Adjustable working distance between 310mm to 60 mm
• Telescopic arm for precise XY positioning
• Impressive fast autofocus function frees hands and allows quick inspection of objects at different heights and magnifications
• Larger depth of field for easier and quicker work
• Remote control of magnification, focus, brightness, etc.
• Save images directly on USB stick, no PC needed
• Ethernet connection to share screens simultaneously

• ESD-safe
• Product Details

  Category HD Inspection System

  ESD safe yes

  Magnification 46X Optical - 140X Digital (27" monitor)

  Resolution 1920x1080

  Special features XYZ movement - Image share - 110/240V, Type-C PLUG

  Product OAL (mm - in) 500.00 - 19.685

  Product width (mm - in) 300.00 - 11.811

  Product height (mm - in) 600.00 - 23.622

  Net weight (g-lb) 8000.0 - 17.637

  RoHS compliant yes

  230 V AC / power supply yes

  Euro plug yes

  Battery type Lithium cell CR1220 MFR - 3V + 2xAlkaline AAA
