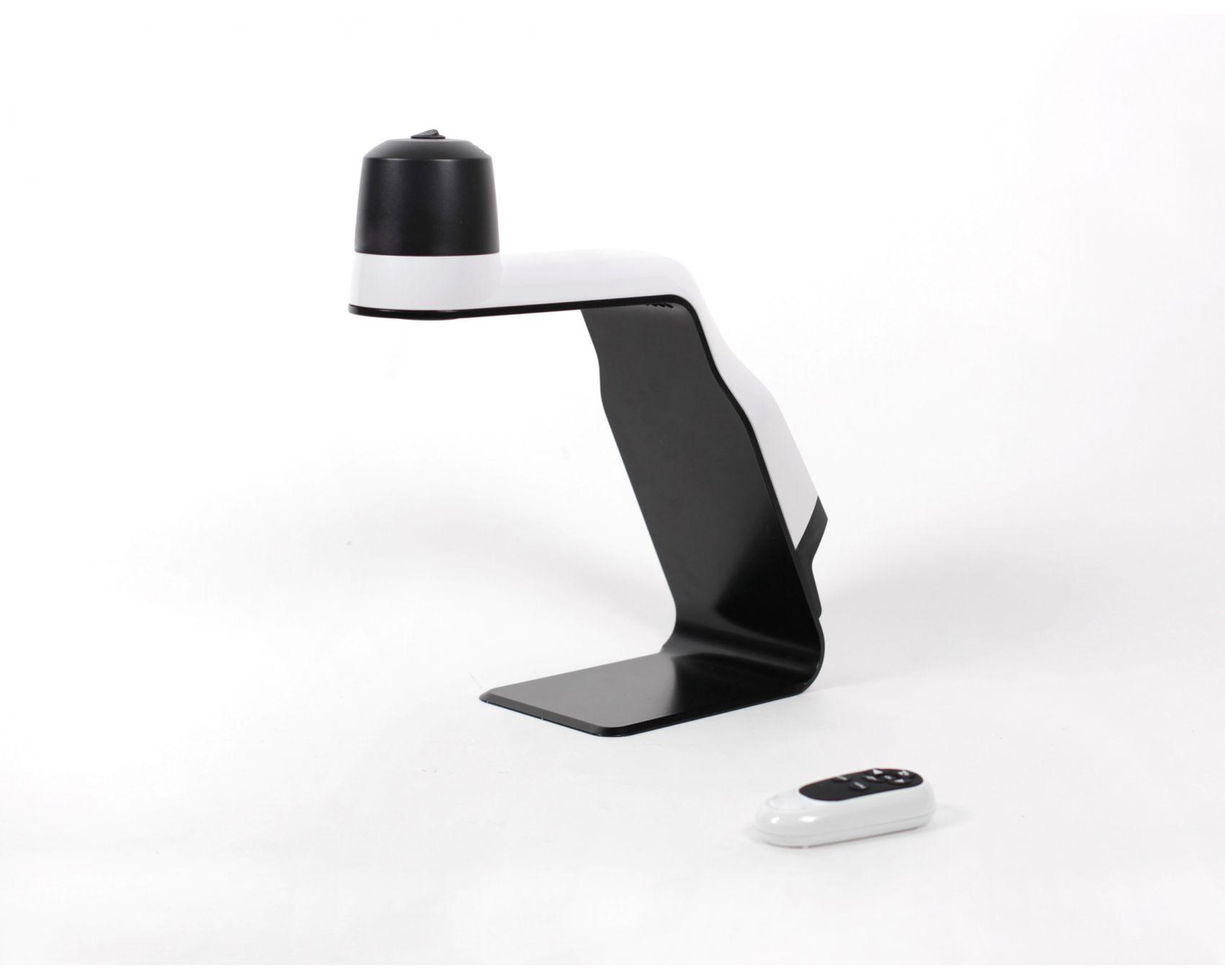

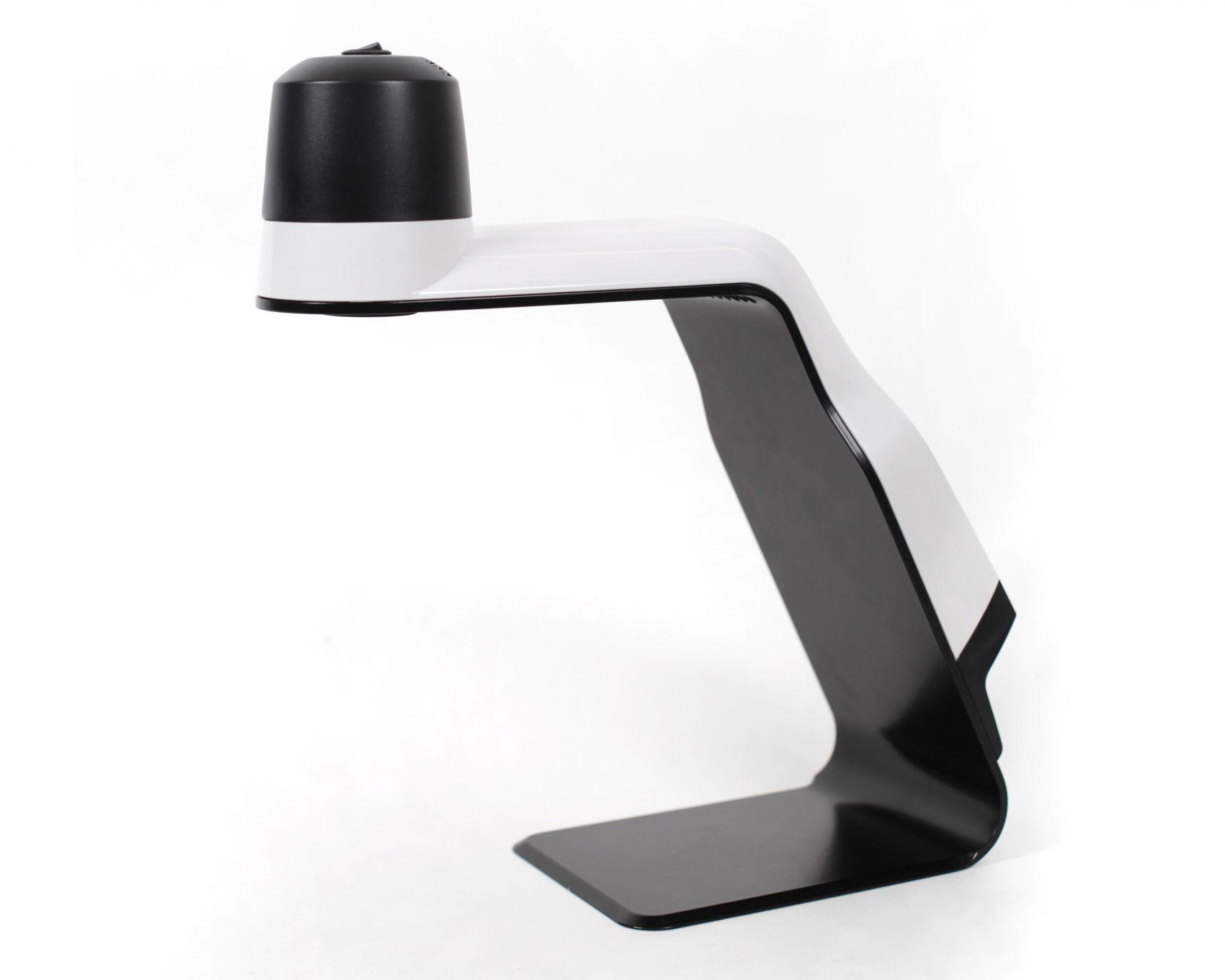

Ideal-tek’s TEK-SCOPE PLUS auto focus FHD camera provides optical magnification of 46x (27” monitor), and digital magnification up to 140x (92x recommended - 27’’monitor)*. ESD-safe solution, TEK-SCOPE PLUS produces high quality distortion free up to 1080p FHD images with no delay and with excellent depth of field.

LED lights give users shadow-free illumination. The large 310 mm working distance enables inspection of a wide variety of objects. TEK-SCOPE PLUS has to be connected to a monitor.**

DisplayPort Output: Live-streaming images on your Monitor (FHD 1920x1080)
Use the remote control to zoom in and out, turn auto focus on or off, fine tune your focus, and much more all with a touch of a button. Simply connect the DisplayPort cable and run.
Save your images directly on USB stick
Snap shot mode. No computer needed. Just connect a USB stick to your TEK-SCOPE PLUS and press MODE button for few seconds on the remote.
USB Output: Live-streaming images on your PC (FHD 1920x1080)
Use the software toolbar to draw, take measurements, make image comparison and more. The software is preinstalled on the included USB flash drive or you can download the latest version on our website (DOWNLOAD section). No drivers, no product keys necessary, simply install and run.
Ethernet Connection
Ethernet connection enables simultaneous screen sharing using the same IP address.

MAIN TEK-SCOPE ADVANTAGES

• Less physical stress than binocular microscopes
• User friendly system
• Longer working distances no risk of board contact. Sufficent clearance for assembly, repair and rework
• Auto focus frees hands and allows quick inspection of objects at different heights and magnifications
• Larger depth of field for easier and quicker work
• Remote control of magnification, focus, brightness, etc.
• Save images directly on USB stick, no PC needed
• Ethernet connection to share screens simultaneously
• ESD safe
