The PELCO^® Small Sample Cleaver™

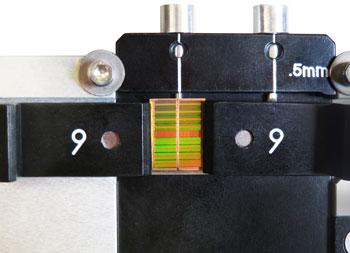

Using simple mechanics, the PELCO^® Small Sample Cleaver™ (formerly from LatticeGear™) uses a novel sample holder and a cleaving platform to safely cleave samples into chips as small as 2 x 2mm. The novel sample holder allows samples from 4-10mm to be held during indenting and cleaving. No more handling samples directly with fingers – gloved hands are ok. The holder has no screws, springs or pins. Accepts samples from 3-15mm in width and 200-900µm in thickness.

Features

• Accepts samples from 3-15mm in width and 200-900µm in thickness
• Four magnetic hold-downs for various sample thicknesses
• Securely transfer the sample to the PELCO^® LatticeAx^® for indent, then back to the Small Sample Cleaver™ for cleaving
• Two cleaving pins for cleaving a variety of sample types
• Gauge sets the sample for an 0.5mm indent versus the standard 1mm indent on the PELCO^® LatticeAx^®
