PELCO® R2 Rotator with 1051 Head, 100-240VAC, 45W, 50/60Hz

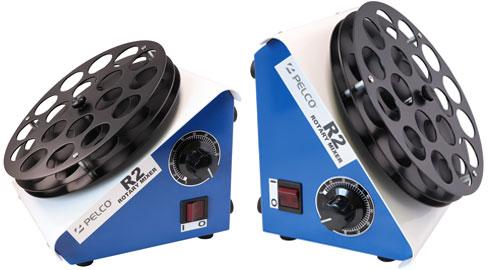

The slow rotational speed of the PELCO® R2 lends itself to EM tissue processing techniques. Slow rotation is recommended for processing specimens and leads to more complete infiltration without air mixing, giving improved results for tissue preparations.
The PELCO® R2 has rubber cushioned feet on the bottom as well as on the back so it may be placed on either of two angles, 35° from horizontal when placed on the "bottom feet" and 55° from horizontal when placed on the "back feet".
A high torque motor maintains constant speed at full load. Variable speed is easily set with a rotary control. Rotational speed is less than 1 to greater than 7.5 rpm. The PELCO® R2 has been tested under heavy load conditions to assure reliability.
A black-anodized head (1051) with 18 holes for bottles or vials up to 30mm in diameter comes with the R2. Our #12706 Snap-Cap® Vials are used in this head. Optional head is available (1054).
|
Dimensions
With 1051 Head Mounted the R2 Occupies the Following Dimensions: Weight with 1051 Head: 2.4Kg (5.25 lbs.) Power Requirements: Universal Voltage 100-240VAC, 45W, 50/60Hz |
| Prod # | Description | Unit |
|---|---|---|
| 1050 | PELCO® R2 Rotator with 1051 Head, 100-240VAC, 45W, 50/60Hz | each |
| 1051 | R2 Rotator Head, with 18 holes (32mm ø) | each |
| 1050-115-1 | Replacement Motor for PELCO® R2 Rotator | each |
