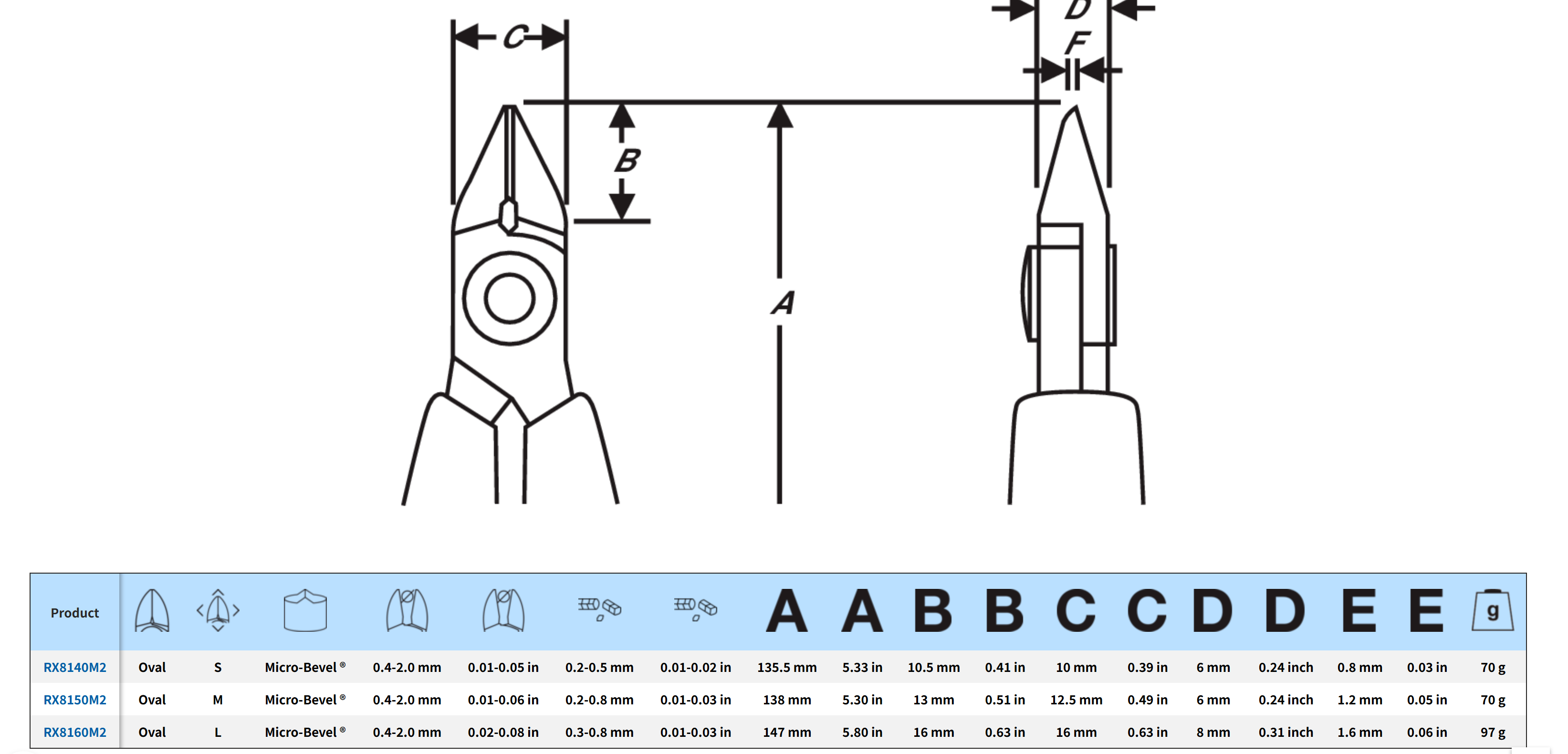

图片为：RX8140M2,RX8150M2,RX8160M2共用图片

Precision oval head diagonal cutters developed according to the scientific ERGO™ process, Oval head

Designed to cut hard wires, stents, guidewires and monofilar or multifilar catheter coils

ERGO™ handles with two-component combination and thermoplastic surface for comfortable grip, on tough polypropylene core for rigidity

Micro-bevel, flush & ultra-flush cut

The stated cutting capacity is for copper wire

Cutting capacity: 0.1-0.8 mm to 0.4-2 mm

High performance alloy steel

Burnished finish

Numerically controlled machine grinding ensures edge angle accuracy and contact, increasing tool reliability and consistency

Precision induction-hardened edges 63-65 HRC

Screw joint minimises friction and maximises alignment of cutting edges

ESD safe handles in two-component synthetic material

Bio spring limits tension through the working cycle of the tool and can be adjusted to 3 different positions or removed

Ideal for wire harness work and standard printed circuit board assembly
