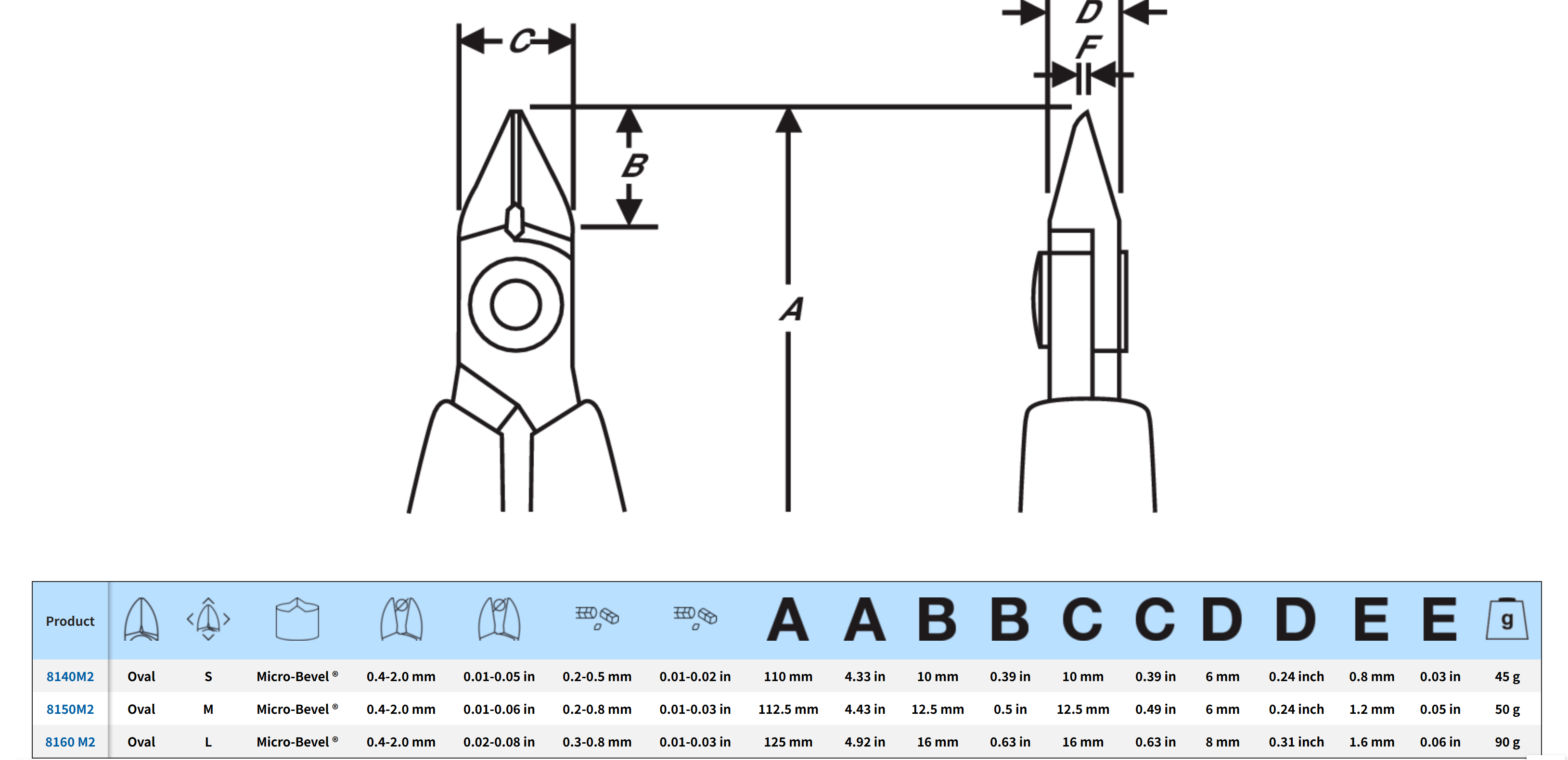

本图片为8140M2,8150M2,8160M2通用图片

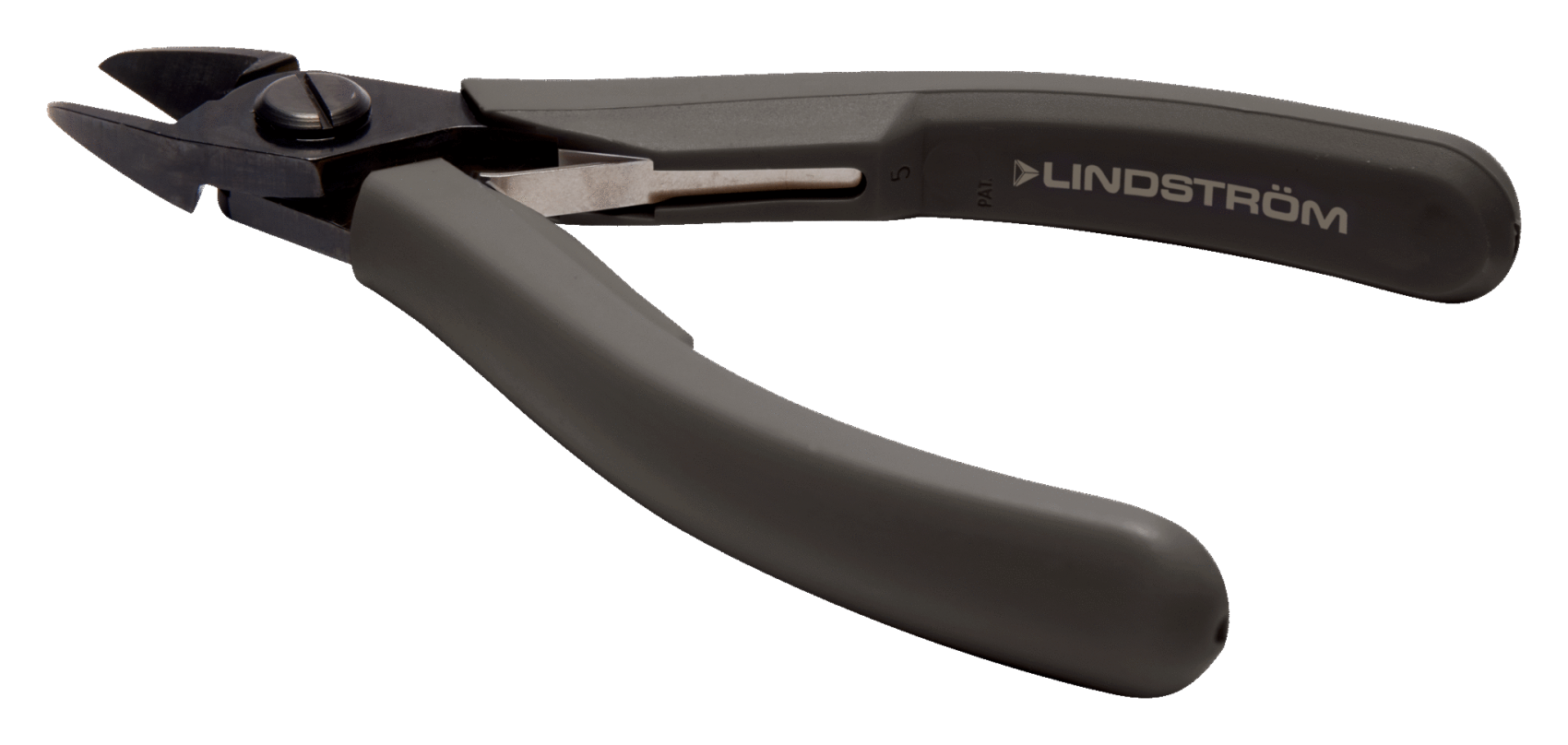

80 series precision diagonal cutters

Designed to cut hard wires, stents, guidewires and monofilar or multifilar catheter coils

ESD safe mono-material handles with return spring

Micro-bevel, flush & ultra-flush cut

The stated cutting capacity is for copper wire

Suitable for cutting copper

High performance alloy steel

Burnished finish

Numerically controlled machine grinding ensures edge angle accuracy and contact, increasing tool reliability and consistency

Precision induction hardened edges 63-65 HRC

Screw joint minimises friction and maximises alignment of cutting edges

Ideal for wire harness work and standard printed circuit board assembly

CO standard handle shape in conductive material
