Content: see parts list

tip thickness 0.2 mm (+/-0.05 tolerance)

material stainless steel SA

matt polished surface, smooth and glare-free

measures 130 x 140 x 20 mm

weight 150 g

For precise gripping, holding, and positioning work in laboratories, on testing equipment, especially under the microscope. With a tip dimension of 0.2 mm with a tolerance of +/-0.05, also suitable for equipping robotics (pick-and-place), for repeatable accurate setting can be enabled.

100% stainless steel anti-magnetic, stainless and acid resistant, non-reflective matt fine polished. Stainless austenitic chromium nickel quality steel with low carbon content, for good corrosion resistance (not seawater resistant). Case consisting of ESD imitation leather, EPA suitable for electrostatically protected areas (ESD workplace/ESD protection zone corresponds to standard DIN EN 61340-5-1), dissipative 10^6 Ohm. The leatherette is flame retardant, biocompatible and contains a dissipative Velcro strap to prevent static charge when opening.

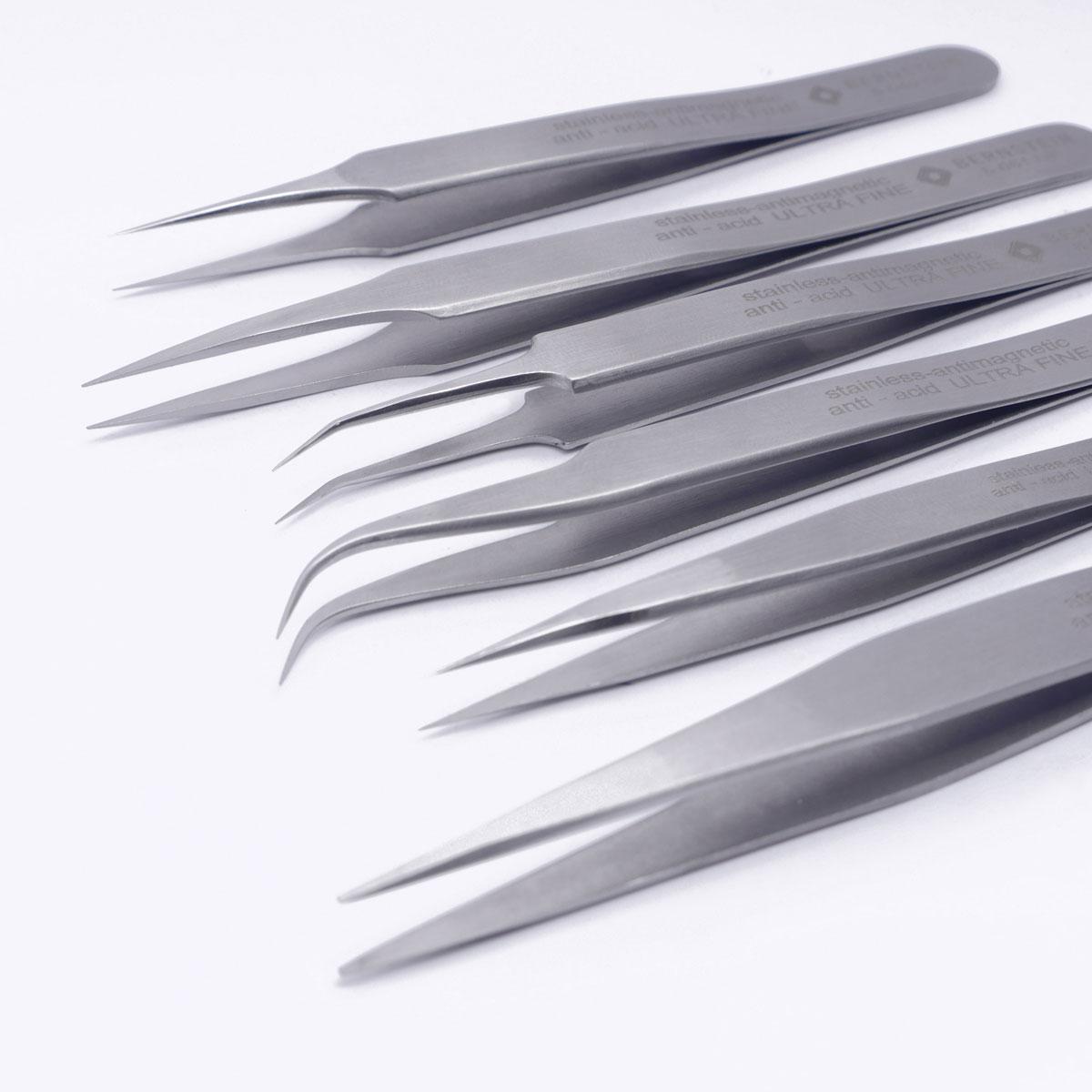

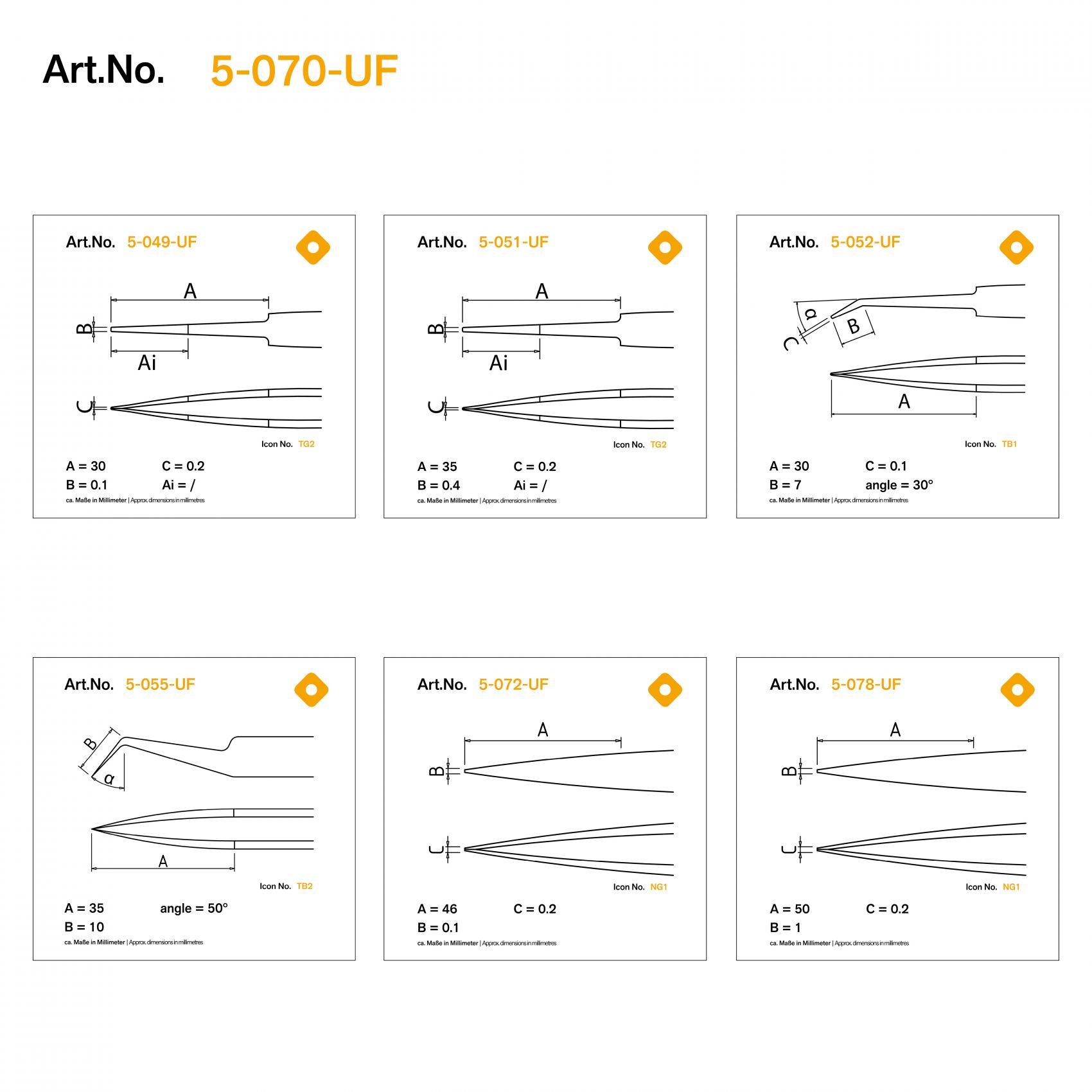

SMD tweezers set ULTRA FINE consists of: 5-060-0 leatherette bag 6 empty pockets;

5-049-UF SMD tweezers 110 mm form 4 stainless steel very pointed;

5-051-UF SMD tweezers 120 mm form 2 stainless steel very pointed;

5-052-UF SMD tweezers 110 mm form 5b stainless steel 30° very pointed;

5-055-UF SMD tweezers 120 mm form 7a stainless steel 40° very pointed;

5-072-UF universal tweezers ULTRA FINE 110 mm form 3c stainless steel very pointed;

5-078-UF universal tweezers ULTRA FINE 130 mm form PSF stainless steel very pointed
