Content: see parts list

tip thickness 0.2 mm (+/-0.05 tolerance)

material stainless steel SA

matt polished surface, smooth and glare-free

ESD coating dissipative between 10^6 to 10^9 ohm

measures 130 x 140 x 20 mm

weight 150 g

For precise gripping, holding, and positioning work in laboratories, on testing equipment, especially under the microscope. With a tip dimension of 0.2 mm with a tolerance of +/-0.05, also suitable for equipping robotics (pick-and-place), for repeatable accurate setting can be enabled.

100% stainless steel anti-magnetic, stainless and acid resistant, non-reflective matt fine polished. Stainless austenitic chromium nickel quality steel with low carbon content, for good corrosion resistance (not seawater resistant). Dissipative black ESD coating achieves a surface leakage resistance of 10^6 to 10^9 ohm. Case consisting of ESD imitation leather, EPA suitable for electrostatically protected areas (ESD workplace/ESD protection zone corresponds to standard DIN EN 61340-5-1), dissipative 10^6 Ohm. The leatherette is flame retardant, biocompatible and contains a dissipative Velcro strap to prevent static charge when opening.

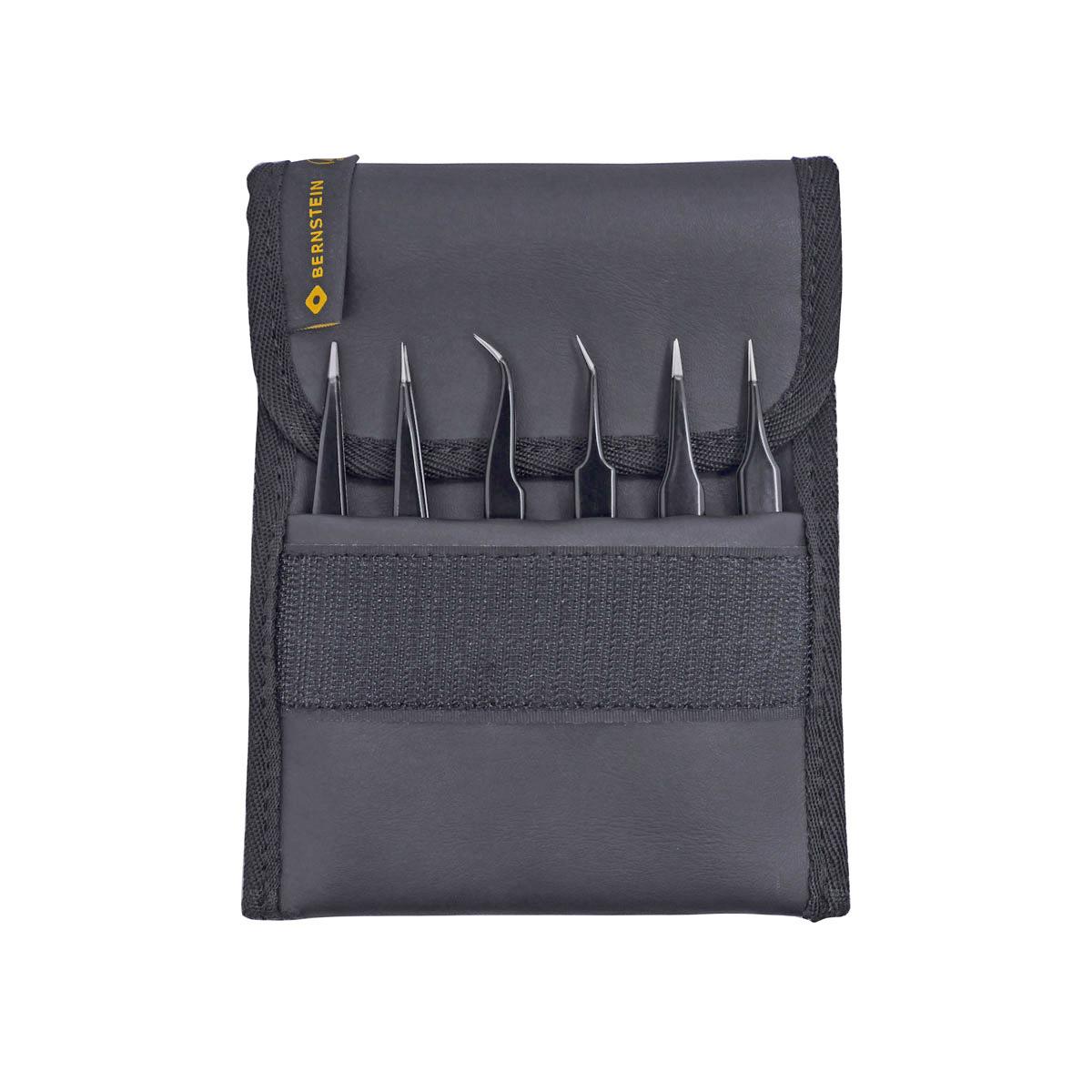

ESD SMD tweezers set ULTRA FINE consists of: 5-060-0-ESD dissipative bag 6 empty pockets;

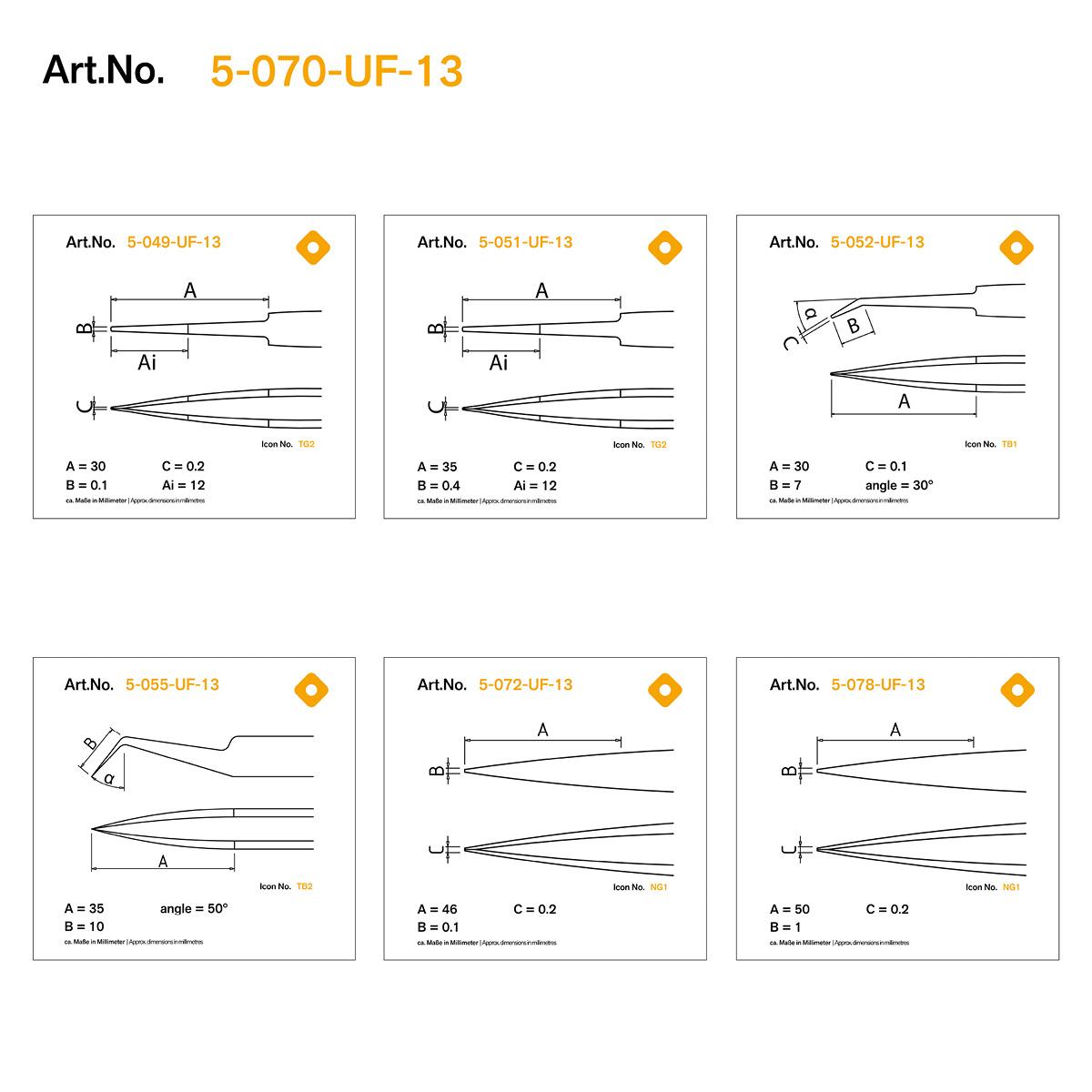

5-049-UF-13 ESD SMD tweezers ULTRA FINE 110 mm form 4 stainless steel thin straight-pointed dissipative;

5-051-UF-13 ESD SMD tweezers ULTRA FINE 110 mm form 2 stainless steel thin straight-pointed dissipative;

5-052-UF-13 ESD SMD tweezers ULTRA FINE 110 mm form 5b stainless 30° very sharply pointed dissipative;

5-055-UF-13 ESD SMD tweezers ULTRA FINE 110 mm form 7a stainless 40° very sharply pointed dissipative;

5-072-UF-13 ESD SMD tweezers ULTRA FINE 110 mm form 3c stainless steel thin straight-pointed dissipative;

5-078-UF-13 ESD SMD tweezers ULTRA FINE 110 mm form PSF stainless steel thin straight-pointed dissipative
