Content: see parts list

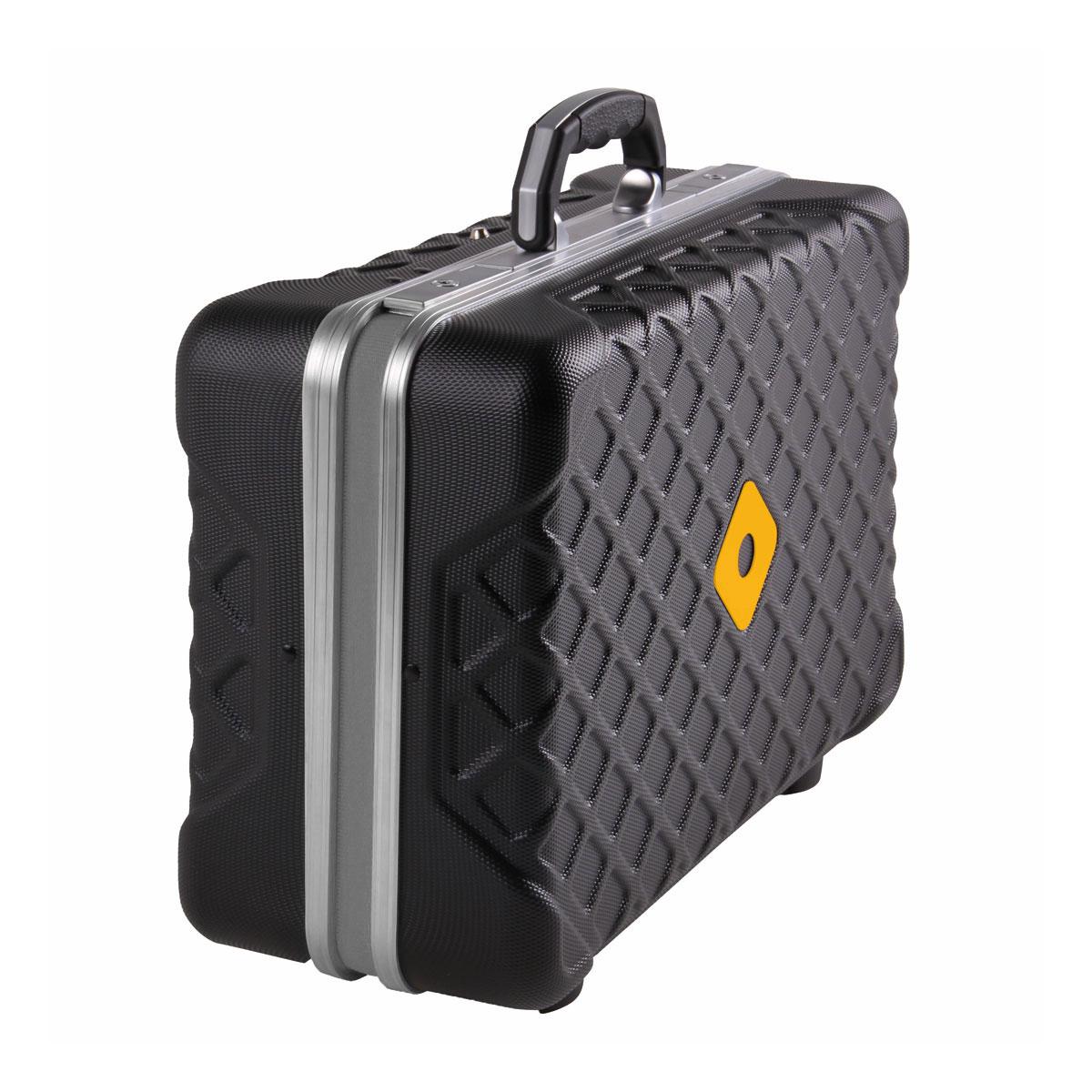

hard case PROTECTION

case rhomb design for more stability made of X-ABS material

divisible floor tray

document compartment in the case lid

tool panels made of ConPearl, sturdy, washable and removable

locks, ergonomic handle, multiple profiled aluminum frame

hinges with case lid locking

measures 480 x 350 x 190 mm

weight 8600 g, empty 4300 g

The case with special tools for the installation and maintenance of telecommunications systems, data networks and working with VDE-insulated tools.

The compact shape and textured surface give the case a high degree of stability and give it its unmistakable amber design. The use of X-ABS plastic with an extremely non-slip surface makes the case more resistant to external influences. The highly impact and fracture resistant material also makes the case airworthy, as it withstands the rough handling of checked baggage. The ergonomically shaped handle with recessed grips and the ratchet hinges with lid locking complete the picture of a highly functional and modern tool case.

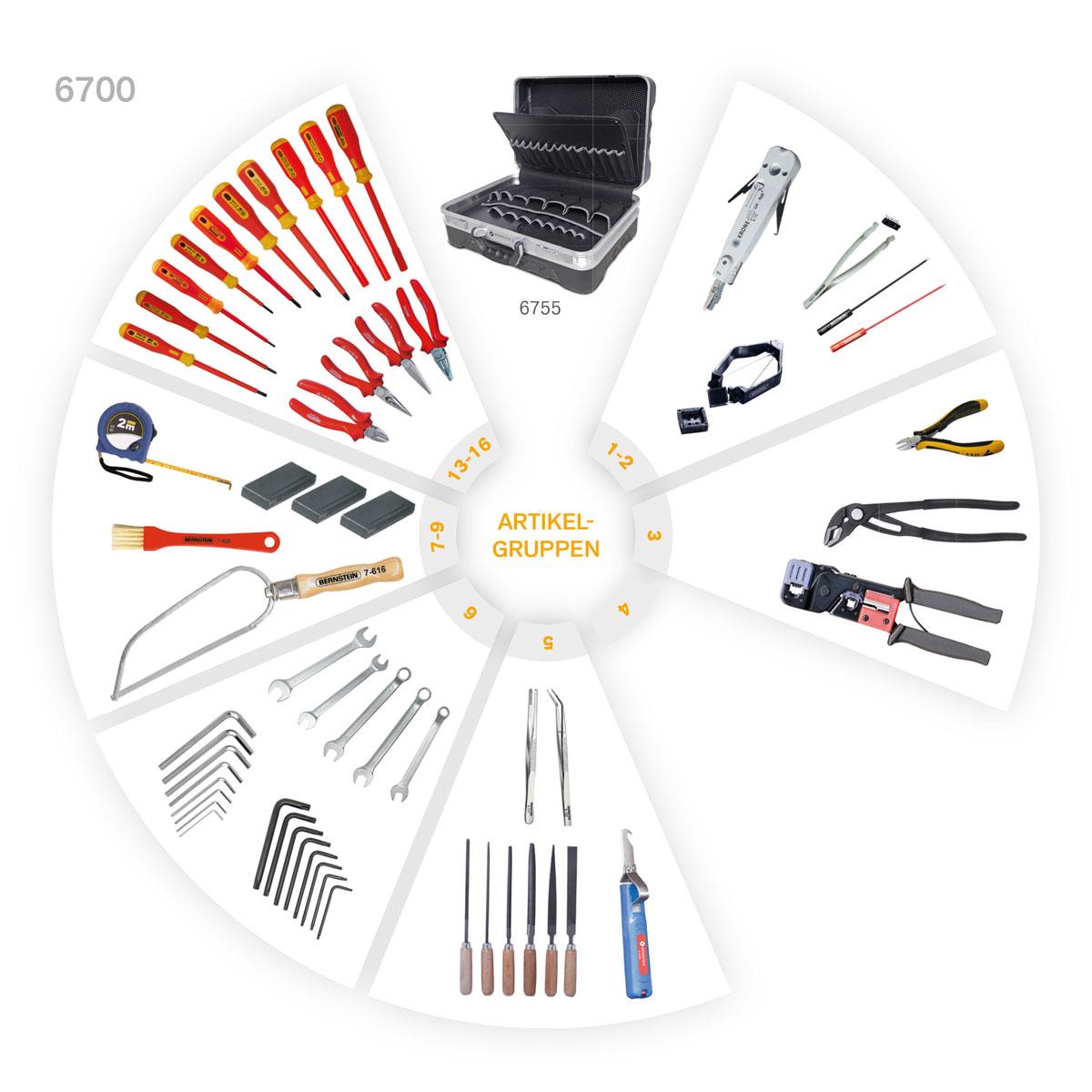

Tool case TELEDATA consists of:

6755 tool case PROTECTION 42 empty pockets;

2-265-1 test prod red blade 1 mm;

2-265-2 test prod black blade 1 mm;

2-601 IC-tweezers 125 mm;

2-620 PLCC-extractor;

2-701 LSA-Plus insertion tool;

3-573 water pump pliers 180 mm with push-button;

3-601-15 ESD side cutters CLASSICline semi flush 115 mm;

3-0605 combination crimping pliers;

5-107 anatomical tweezers 150 mm form 22b;

5-117 anatomical tweezers 145 mm form 40 serrated;

5-240 warding files set 6 pcs (flat,round,blunt,pointed,3-edge,4-edge);

5-505 stripping knife Ø 4-28 mm with hook blade;

6-500 double open-ended wrench set 8 pcs (6x7-8x9-10x11-12x13-14x15-16x17-18x19-20-22);

6-600 combination wrench set 12 pcs (6-7-8-9-10-11-12-13-14-17-19-22);

6-950 ballpoint wrench key set 9 pcs (1.5-2.0-2.5-3.0-4.0-5.0-6.0-8.0-10.0);

6-995 TORX wrench key set with hole 8 pcs (T9-T10-T15-T20-T25-T27-T30-T40);

7-425 dust brush bristles width 25 mm;

7-506 tape measure 2 m;

7-616 bag-saw PUK in case;

9-316 ESD chip-container 57x36x17 mm;

13-906-VDE side cutters 160 mm;

13-915-VDE telephone pliers 160 mm serrated jaws straight with wire cutter;

13-927-VDE flat nose pliers 160 mm with serration;

13-936-VDE combination pliers 160 mm with serration;

14-651-VDE screwdriver slot blade 2.5x75 mm;

14-652-VDE screwdriver slot blade 3.5x100 mm;

14-653-VDE screwdriver slot blade 4.0x100 mm;

14-681-VDE screwdriver cross-recess PH0 Ø 3.0 mm;

14-682-VDE screwdriver cross-recess PH1 Ø 4.5 mm;

14-683-VDE screwdriver cross-recess PH2 Ø 6.0 mm;

14-695-VDE combination screwdriver cross-recess PZ/S1;

16-299-VDE socket wrench 4.0 mm;

16-301-VDE socket wrench 5.0 mm;

16-302-VDE socket wrench 5.5 mm
