Battery-free, hand-held vacuum pick up pen designed for the safe pick-up of SMD components during assembly, test and rework processes. With fountain-pen dimensions, Vampire grabs, lifts and places components in complete safety, aided by a powerful internal piston and a full ESD protection. A complete choice of tips designed for any size of SMD component helps the operator to have always the right tool in hand. Includes: pen, conductive metal straight needle, 45° angled metal needle, conductive rubber cup 4 mm, conductive rubbercup 6 mm, conductive rubber cup 9 mm, and lubricant kit.
| Cat # | Description | Pack |
|---|---|---|
| 71927-01 | ESD Vacuum Tool Kit | Kit |

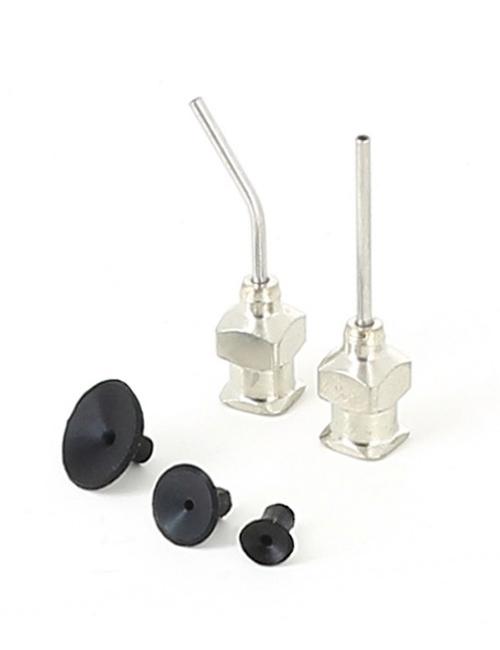

| 71927-02 | ESD Vacuum tool replacement set: needles and cups | Set |

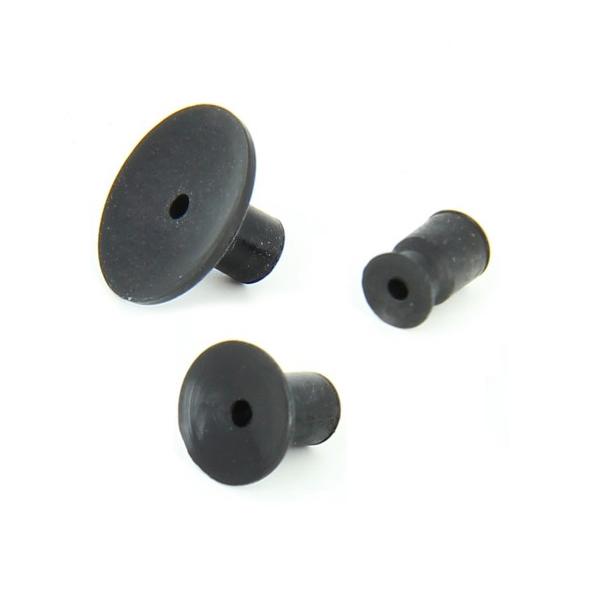

| 71927-03 | ESD Vacuum tool replacement set: rubber cups | Set |
| 71927-04 | Spare ESD 4 mm cups | Each |
| 71927-05 | Spare ESD 6 mm cups | Each |
| 71927-06 | Spare ESD 9 mm cups | Each |

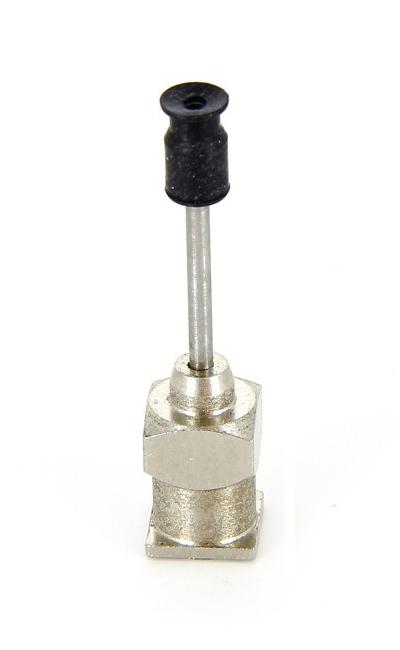

| 71927-07 | Straight needle with ESD 4mm cup | Each |
| 71927-08 | Straight needle with ESD 6mm cup | Each |
| 71927-09 | Straight needle with ESD 9mm cup | Each |

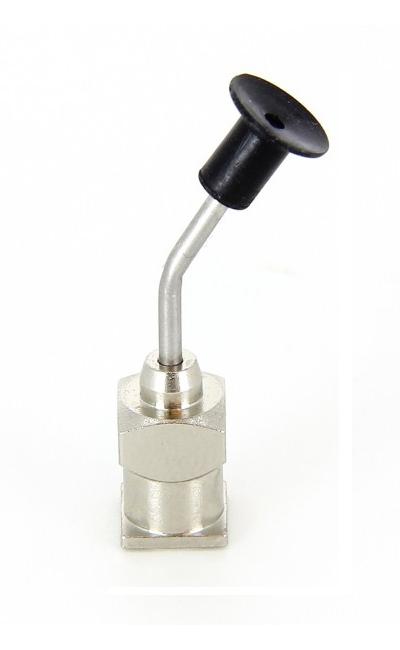

| 71927-10 | 45 angle needle with ESD 4mm cup | Each |
| 71927-11 | 45 angle needle with ESD 6mm cup | Each |
| 71927-12 | 45 angle needle with ESD 9mm cup |
Each |
