AC-CNP, TADF yellow to orange dopant material

Available in sublimed grade for highly efficient TADF-OLED devices, 5,6-Bis(4-(9,9-dimethylacridin-10(9H)-yl)phenyl)pyrazine-2,3-dicarbonitrile, CAS No. 1883400-34-7

Ac-CNP, 5,6-bis(4-(9,9-dimethylacridin-10(9H)-yl)phenyl)pyrazine-2,3-dicarbonitrile is a TADF yellow to orange emitter with a simple structure of a low-rigid two cyano groups attached electron-accepting pyrazine unit and two electron-donating phenyl acridine units. The two phenyl units act as bridges to the donor acridines and acceptor pyrazine-2,3-dicarbonitrile to form a bipolar A-π-D electronic structure.

Ac-CNP has high photoluminescence quantum yield (PLQY) of 67% and Ac-CNP based devices with mCP as the TADF host showed a high external quantum efficiency (EQE) of 13.3%.

General Information

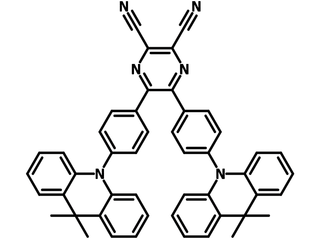

Chemical Structure

Product Details

*Sublimation is a technique used to obtain ultra-pure grade chemicals. For more details about sublimation, please refer to the Sublimed Materials.

Device Structure

Device Structure	ITO (110 nm)/NPD (40 nm)/mCP (10 nm)/Ac-CNP:mCP (6wt%, 20 nm)/PPF (10 nm)/TPBi (30 nm)/LiF (0.8 nm)/Al (100 nm) [1]
Colour	Orange Red CIE (0.47, 0.51)
Max. EQE	13.3%
Max. Current Efficiency	38.1 cd/A
Max. Power Efficiency	26.1 Im/W
