CAS Number 1252914-27-4
BD-1 is symmetrically structured with a 3,8-diisopropyl-1,6-diamine-pyrene core, and two dibenzo[b,d]furan and 4-isopropylphenyl peripheral end groups. Four isopropyl alkyl groups not only promotes greater solubility but also prevents the quenching of the excimers.
BD-1 is a fluorescent blue emitter and normally an anthracene derivative 1,2-ADN is selected as effective host for BD-1 for improving the external quantum efficiency (EQE) of fluorescent OLEDs by utilizing triplet–triplet annihilation. Top-emission organic light-emitting diodes (TEOLEDs) utilising BD-1 as the blue emitting layer material without indium tin oxide (ITO) but a silver (Ag) layer demonstrated a high efficiency of 139.9 cd/A/CIEy at a current density of 10 mA/cm2 [1, 2].
| CAS number | 1252914-27-4 |
|---|---|
| Chemical formula | C64H56N2O2 |
| Molecular weight | 885.14 g/mol |
| HOMO/LUMO | HOMO = - 5.52 eV, LUMO = - 2.78 eV |
| Chemical name | N1,N6-bis(dibenzo[b,d]furan-4-yl)-3,8-diisopropyl-N1,N6-bis(4-isopropylphenyl)pyrene-1,6-diamine |
| Synonyms | BDFDPPDA, NFDIP |
| Classification / Family | Pyrene derivatives, Triarylamines, Blue fluorescent emitter, Sublimed materials, Semiconducting small molecules |
| Purity | Sublimed* >99.0% (HPLC) |
|---|---|
| Melting point | n.a. |
| Appearance | Off-white powder/crystals |
* Sublimation is a technique used to obtain ultra pure-grade chemicals, see sublimed materials for OLED devices.

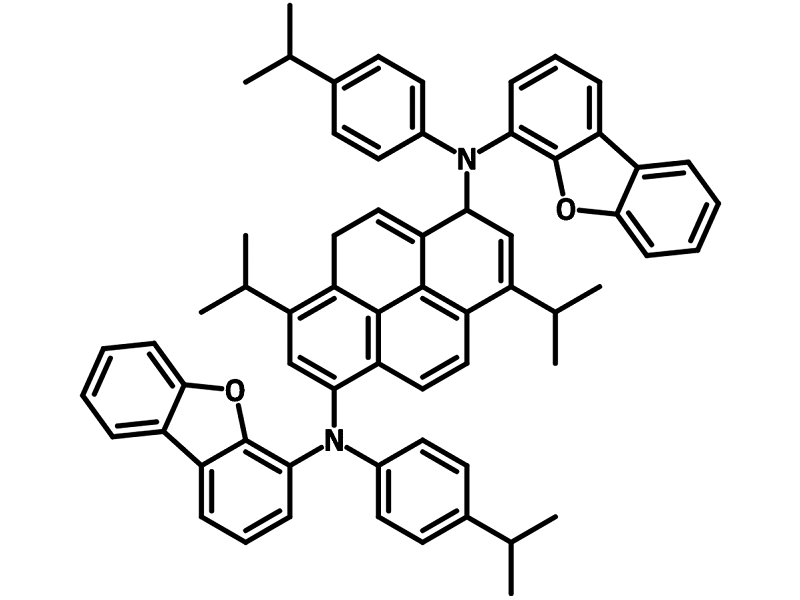

Chemical structure of BD-1, CAS 1252914-27-4专业代理国外知名镊子品牌
