mCPPO1 has a bipolar character with an electron rich 1,3-di(9H-carbazol-9-yl)benzene core unit and an electron deficient diphenylphosphine oxide attachment.

mCPPO1 is an extended family member of mCP with a higher glass transition temperature (Tg = 114.7 °C), and can be used as a phosphorescent host material for blue, green and red organic light emitting diodes. The bipolar charge transport properties of mCPPO1 can effectively balance holes and electrons in the emitting layer, improving device performance.

General Information

Product Details

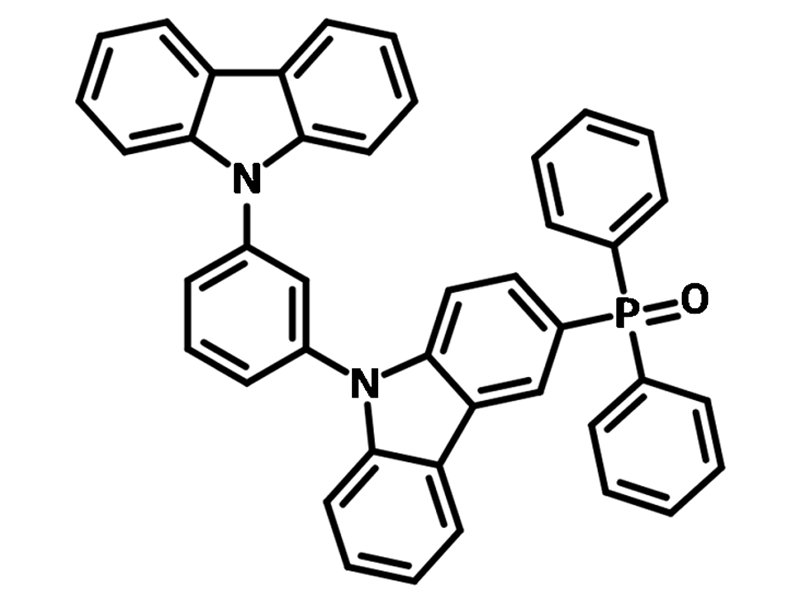

Chemical Structure

Device Structure(s)

Device structure	ITO (70 nm)/4wt% ReO3:mCP (30 nm)/mCP (10 nm)/10wt% (HFP)2Ir(mpic):mCPPO1 (30 nm)/TSPO1 (10 nm)/8wt%Rb2CO3:mCP (30 nm)/Al (100 nm) [3]
Colour	Blue
Max Current Efficiency	27.2 cd/A
Max. Power Efficiency	25.9 lm W-1
Max. EQE	21.4%

Device structure	ITO (50 nm)/PEDOT(CH8000, 60 nm)/TAPC(20 nm)/mCP(10 nm)/mCPPO1:3wt% Ir(dfpypy)dpm (25 nm)/TSPO1(35 nm)/LiF(1 nm)/Al (200 nm) [4]
Colour	Blue
Max Current Efficiency	20.4 cd/A
Max. Power Efficiency	24.7 lm W-1

Device structure	ITO/PEDOT:PSS (45 nm)/TFB (40 nm)/R-QDs:G-QDs* (18 nm, 1:9)/ZnMgO (40 nm)/Al (2 nm)/IZO (60 nm)/HATCN (20 nm)/TAPC (40 nm)/mCP (5 nm)/Firpic:mCPPO1 (30 nm)/TmPyPB (30 nm)/LiF (1 nm)/Al (100 nm) [5]
Colour	White
Max. Power Efficiency	20.31 lm W-1
Max. EQE	26.02%
