PPF contains an electron donating dibenzo[b,d]furan core and two electron deficient diphenylphosphine oxide units. Due to their electron deficient nature, both PPF and PPT can be used as electron transport layer materials, and in some cases, to form exciplex with electron deficient donors, i.e. TAPC as emitting layer materials in TADF-OLED devices.

PPF shows a high triplet energy (ET = 3.1 eV) and it also can be used as host material for effective triplet excitons confinement in the emissive layer. PPF could also be used as exciton blocking layer material.

General Information

Product Details

*Sublimation is a technique used to obtain ultra pure-grade chemicals. For more details about sublimation, please refer to the Sublimed Materials.

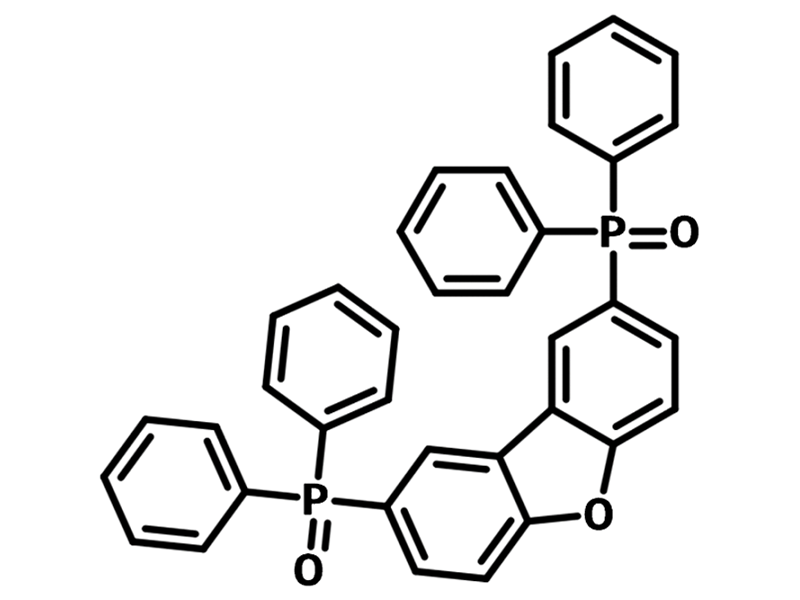

Chemical Structure

Device Structure(s)

Device structure	ITO (50 nm)/HAT-CN (10 nm)/TAPC (50 nm)/CCP (10 nm)/PPF:TMCz-BO (20 nm)/PPF (10 nm)/B3PyPB (30 nm)/Liq (1 nm)/Al (100 nm) [1]
Colour	Blue
Max. EQE	20.7%

Device structure	ITO (50 nm)/TAPC (70 nm)/CDBP (10 nm)/6 wt% CCX-II:PPF (20 nm)/PPF (10 nm)/BmPyPhB (30 nm)/Liq (1 nm)/Al (80 nm) [2]
Colour	Blue
Max. EQE	25.9%
Max. Current Efficiency	41.1 cd/A
Max. Power Efficiency	35.9 lm/W

Device structure	ITO (50 nm)/HAT-CN (10 nm)/α-NPD (50 nm)/CCP (5 nm)/ 6 wt % DPAc-INN-1:PPF (20 nm)/PPF (10 nm)/TPBi (50 nm)/Liq (1 nm)/Al (100 nm) [3]
Colour	Blue
Max. EQE	12.8%
Max. Current Efficiency	24.2 cd/A
Max. Power Efficiency	18.1 lm/W

Device structure	ITO/HAT-CN (10 nm)/a-NPD (40 nm)/CCP (5 nm)/18 wt% MFAc-PPM:PPF (20 nm)/PPF (10 nm)/TPBi (30 nm)/Liq (1 nm)/Al (100 nm) [4]
Colour	Blue
Max. EQE	20.4%
Max. Current Efficiency	41.7 cd/A
Max. Power Efficiency	37.2 lm/W
