Highly efficient blue as well as green, yellow and host for red phosphorescent emitter, 2,4,6-tris(2-(1H-pyrazol-1-yl)phenyl)-1,3,5-triazine (3P-T2T), CAS 352196-01-1

3P-T2T, 2,4,6-tris(2-(1H-pyrazol-1-yl)phenyl)-1,3,5-triazine, has a structure with an electron deficient triazine core equipped with phenylpyrazole peripherals. Like PO-T2T and 3N-T2T, 3P-T2T is one of the triazine derivatives and is normally used as an electron transport layer (ETL) in OLED devices. 3P-T2T shows a higher electron transport/injection ability than T2T due to the peripheral three electron-withdrawing pyrazolyl moieties.

As an acceptor, together with TCTA as hole transporting donor, 3P-T2T forms exciplex as a highly efficient yellow delayed fluorescent emitter. The exciplex TCTA:3PT2T has high and balanced hole and electron mobilities and large energy-levels offsets at the TCTA/3P-T2T interface.

3P-T2T can not only accommodate highly efficient blue, but can also act as suitable host for green, yellow and red phosphorescent emitters.

General Information

Product Details

*Sublimation is a technique used to obtain ultra pure-grade chemicals. For more details about sublimation, please refer to the sublimed materials.

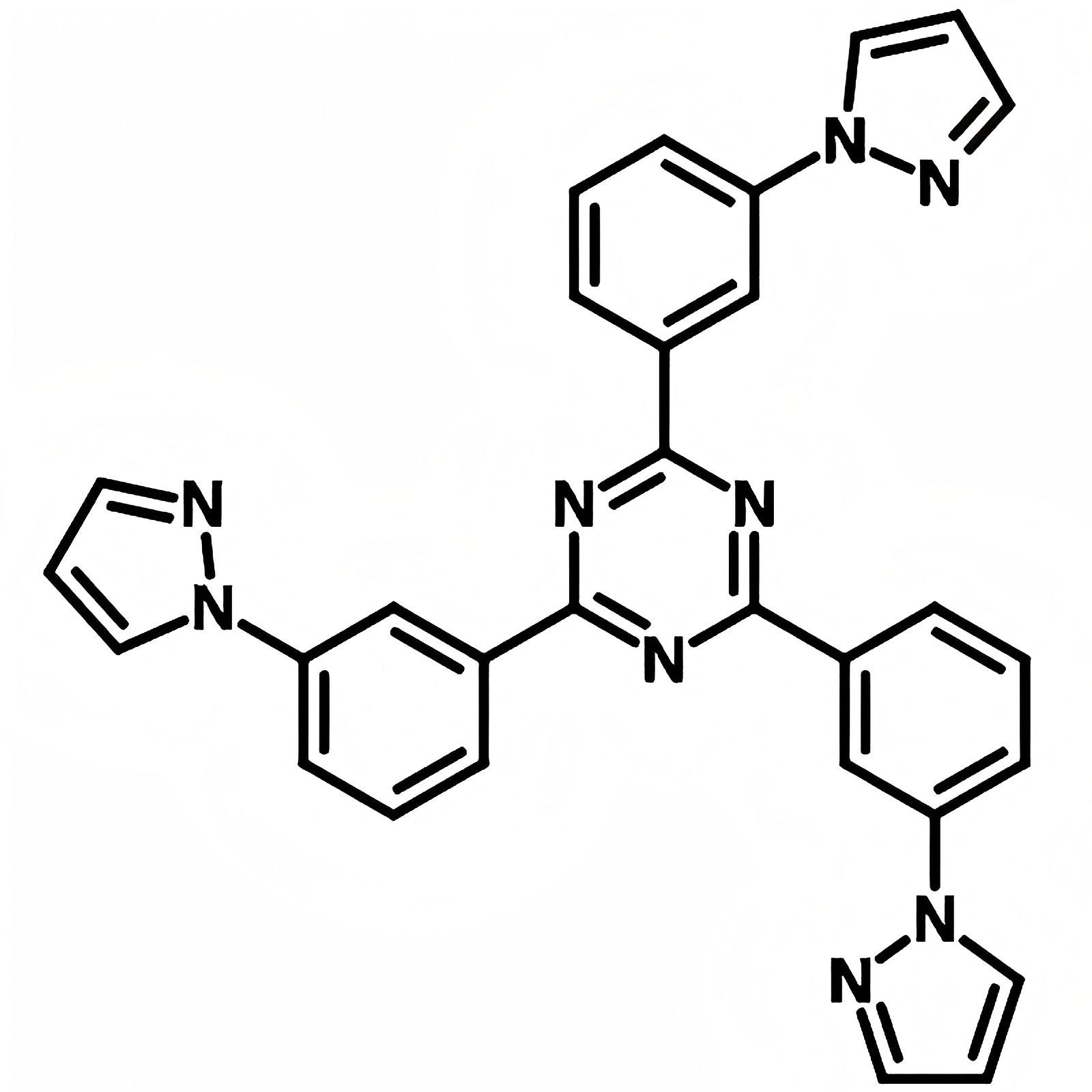

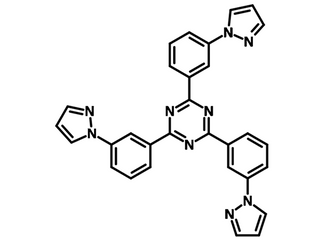

Chemical Structure

Device Structure(s)

Device structure	ITO/pedot:pss (30 nm)/NPB (20 nm)/TCTA (5 nm)/TCTA:3PT2T50 mol % (25 nm)/ 3P-T2T (50 nm)/Liq/Al [1]
Colour	Yellow
Max. Current Efficiency	23.6 cd/A
Max. EQE	7.8 %
Max. Power Efficiency	26.0 Im/W

Device structure	ITO/MoO3 (3 nm)/NPB (20 nm)/TCTA (8 nm)/TCTA:3P-T2T (1:1): 1 wt% DCJTB (15 nm)/3P-T2T (45 nm)/LiF (1 nm)/Al [2]
Colour	Red
Max. Current Efficiency	22.7 cd/A
Max. EQE	10.15 %
Max. Power Efficiency	21.5 Im/W

Device structure	ITO/4 wt% ReO3:Tr-Ph (60 nm)/Tr-Ph (15 nm)/Tr-Ph:3P-T2T (1:1, 20 nm)/3P-T2T (10 nm)/CN-T2T (40 nm)/Liq (0.5 nm)/Al (100 nm) [3]
Colour	Yellow
Max. Current Efficiency	29.8 cd/A
Max. EQE	10.3%
Max. Power Efficiency	37.5 Im/W

Device structure	ITO/HAT-CN (15 nm)/TAPC (30 nm)/mCBP (5 nm)/4CzIPN:o-CbzBiz (9 wt %; 25 nm)/3P-T2T (50 nm)/LiF (1 nm)/Al (100 nm) [4]
Colour	Green
Max. Current Efficiency	52.9 cd/A
Max. EQE	16.7%
Max. Power Efficiency	41.6 Im/W
