PXZ-TRZ has a bipolar structure with phenoxazine (PXZ) as an electron donor unit and 2,4,6-triphenyl-1,3,5-triazine (TRZ) as an electron acceptor unit.

PXZ-TRZ is a green emitter and is mainly used as a dopant or assistant dopant material in highly efficient TADF-OLED devices, but can also be used as a host or co-host material. The orientational packing order of a linear-shaped dopant such as PXZ-TRZ can be selectively controlled in a randomly oriented co-host matrix with mCBP by varying the temperature during deposition of the thin films.

General Information

Product Details

*Sublimation is a technique used to obtain ultra pure-grade chemicals. For more details about sublimation, please refer to the sublimed materials.

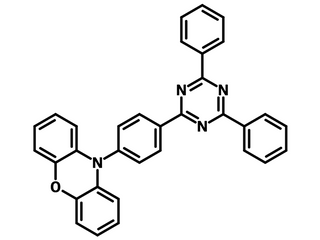

Chemical Structure

Device Structure(s)

Device structure	ITO/TAPC (35 nm)/1 wt%-TBRb:25 wt%-PXZ-TRZ:mCBP (30 nm)/T2T (10 nm)/Alq3 (55 nm)/LiF (0.8 nm)/Al (100 nm) [2]
Colour	Yellow
Max. Current Efficiency	60 cd/A
Max. EQE	18.0%
Max. Power Efficiency	58 Im/W

Device structure	ITO/HAT-CN (10 nm)/TAPC (40 nm)/TCTA (10 nm)/ SF4-TPE:40 wt% PXZ-TRZ:1 wt% TBRb (20 nm)/TmPyPB (60 nm)/Liq (2 nm)/Al (100 nm) [3]
Colour	Yellow
Max. EQE	23.0 %
Max. Power Efficiency	60.3 Im/W

Device structure	ITO/HAT-CN (10 nm)/TAPC (40 nm)/TCTA (10 nm)/ SF4-TPE:20 wt% PXZ-TRZ:1 wt% TBRb (20 nm)/TmPyPB (60 nm)/Liq (2 nm)/Al (100 nm) [3]
Colour	Yellow
Max. EQE	24.7 %
Max. Power Efficiency	61.6 Im/W

Device structure	ITO/HAT-CN (10 nm)/TAPC (40 nm)/TCTA (10 nm)/SF4-TPE: 30% PXZ-TRZ:1 wt% TBRb (17.5 nm)/SF4-TPE: 40 wt% 4P-NPD (2.5 nm)/TmPyPB (45 nm)/Liq (2 nm)/Al (100 nm) [3]
Colour	White
Max. EQE	24.5 %
Max. Power Efficiency	65.4 Im/W
