HBL material to significantly improve device operational lifetimes, 2,8-Di(9H-carbazol-9-yl)dibenzo[b,d]thiophene, CAS No. 913738-04-2, Sublimed  ≥99.0%

DCzDBT, also referred to as mCBT, is a carbazole-based bipolar host material containing two carbazole and one dibenzothiophene units for blue thermally activated delayed fluorescent (TADF) devices achieving excellent external quantum efficiencies (EQE).

With a wide bandgap, DCzDBT has also been used as hole blocking layer (HBL) material to replace BAlq to significantly improve device operational lifetimes.

General Information

Product Details

*Sublimation is a technique used to obtain ultra pure-grade chemicals. For more details about sublimation, please refer to the Sublimed Materials.

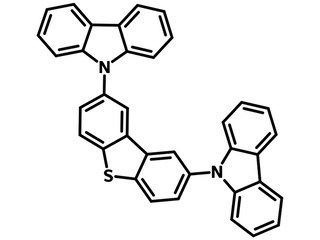

Chemical Structure

Device Structure(s)

Device structure	ITO/HATCN (10 nm)/NPD (40 nm)/TrisPCz/10% PtN'1N-tBu:mCBP (25nm)/DCzDBT (8 nm)/BPyTP (40 nm)/LiF (1 nm)/Al (100 nm) [2]
Colour	Sky-blue
Max. EQE	17.8%

Device structure	ITO (40 nm)/HATCN (10 nm)/NPD (40 nm)/Tris-PCz (10 nm)/20% PtNON:mCBP (10 nm)/10% PtNON:mCBP (4 nm)/2% TBPe:mCBP (2 nm)/10% PtNON:mCBP (4 nm)/6% PtNON:mCBP (10 nm)/DCzDBT (8 nm)/ BPyTP (40 nm)/LiF (1 nm)/AL (100 nm) [3]
Colour	Sky-blue
Max. EQE	18%

Device structure	ITO (50 nm)/HATCN (7 nm)/TAPC (75 nm)/2CzPN 6 wt% DCzDBT (20 nm)/TmPyPB (50 nm)/LiF (1.5 nm)/Al (100 nm)
Colour	Sky-blue
Max. Current Efficiency	10.72 cd/A
Max. EQE	18.5 %
