High PLQY efficiency and purity, 2-phenyl-4'-carbazole-9H-thioxanthen-9-one-10,10-dioxide, CAS No. 1623010-64-9, Sublimed ≥99.0%

TXO-PhCz is a TADF green emitter with a typical D-A structure consisting with electron withdrawing thioxanthone and electron-donating phenylcarbazole units.

The D-A moieties of TXO-PhCz is angularly linked to provide effective separation of electron densities of the highest occupied molecular orbital (HOMO) and lowest unoccupied molecular orbital (LUMO) in a single molecule.

Small ΔEST of 73 meV for TXO-PhCz is observed resulting efficient reversed intersystem crossing (RISC) and then high photoluminescence quantum yield (PLQY) efficiency.

General Information

Product Details

*Sublimation is a technique used to obtain ultra pure-grade chemicals. For more details about sublimation, please refer to the Sublimed Materials.

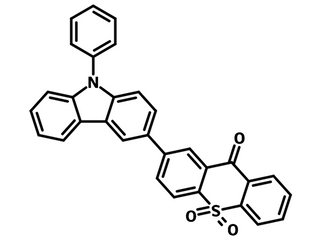

Chemical Structure

Device Structure(s)

Device structure	ITO/ZnO (20 nm)/Cs2CO3 (5 nm)/BPhen (40 nm)/mCBP:10wt% TXO-PhCz (30 nm)/TAPC (40 nm)/MoO3 (10 nm)/Al (90 nm) [2]
Colour	Green
Max. Current Efficiency	53.9 cd/A
Max. EQE	16.4 %
Max. Power Efficiency	35.6 Im/W

Device structure	ITO (150 nm)/PEDOT (20 nm)/TAPC (20 nm)/mCP (10 nm)/TXO-PhCz:TPBI (5 wt%) (30 nm)/TmPyPB (65 nm)/LiF (0.9 nm)/Al (100 nm) [3]
Colour	Green
Max. Current Efficiency	71.9 cd/A
Max. EQE	23.2 %
Max. Power Efficiency	45.2 Im/W

Device structure	ITO/ZnO (25 nm)/Cs2CO3(7 nm)/Alq3 (30 nm)/T2T (10 nm)/TXO-PhCz:mCBP (10% 30 nm)/TAPC (50 nm)/MoO3 (10 nm)/Al (100 nm) [4]
Colour	Green
Max. Current Efficiency	28.1 cd/A
Max. EQE	9.8 %
Max. Power Efficiency	16.1 Im/W
