5TCzBN is another sky-blue emitter from the cabzolyl benzonitrile (CBN) family that is used in TADF-OLED devices with great performance.

Acting as an encapsulation shell to the luminophore in 5TCzBN, tert-butyl units are believed to reduce the singlet–triplet splitting (ΔEST) of the compounds, which gives rise to a more efficient reverse intersystem crossing (RISC) process by effectively separating the neighbouring molecules.

General Information

* Measurable with an optical spectrometer

Product Details

* Sublimation is a technique used to obtain ultra pure-grade chemicals, see sublimed materials.

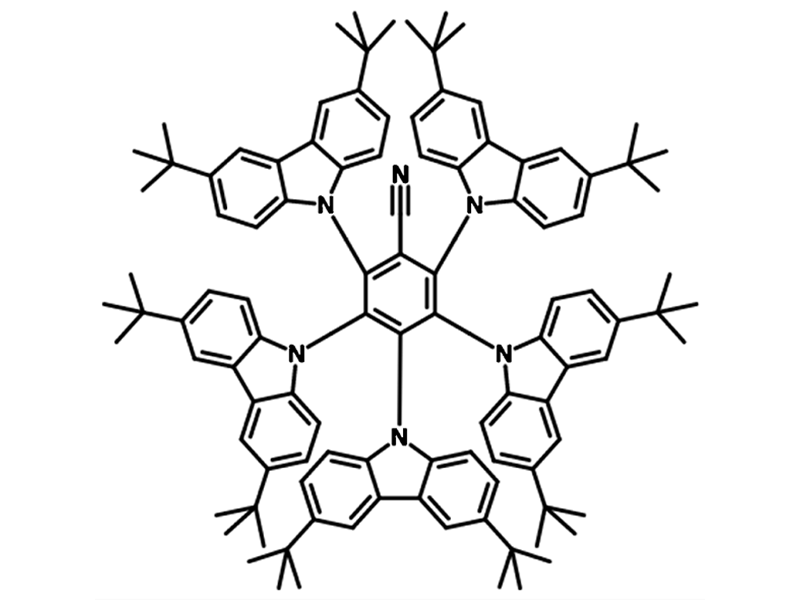

Chemical Structure

Device Structure(s)

Device structure	ITO/HATCN (5 nm)/NPB (30 nm)/TCTA (10 nm)/mCBP:5TCzBN (20 wt%) (30 nm)/DpyPA:Liq (1:1, 30 nm)/LiF (0.5 nm)/Al (150 nm) [2]
Colour	Sky-blue
Max. EQE	21.2%
Max. Power Efficiency	56.1 Im/W

Device structure	ITO/HATCN (5 nm)/NPB (40 nm)/TCTA (10 nm)/30 wt% 5TCzBN: DMIC-TRZ (30 nm)/B3PyMPM (40 nm)/LiF (1 nm)/Al (150 nm) [3]
Colour	Blue
Max. EQE	19.2%
Max. Power Efficiency	33.8 Im/W

Device structure	ITO/HATCN/NPB (30 nm)/TCTA (10 nm)/5TCzBN: mCBP (30 nm)/DPyPA:Liq (1:1, 30 nm)/Al/LiF (0.5 nm) [4]
Colour	Blue
Max. EQE	21.3%
Half-life Time	12,873h @ 100cd/m2
