NBPhen is one of the close relatives of BPhen which is used in OLEDs and photovoltaic devices as an electron-injection layer or hole-blocking layer material. Due to its low evaporation temperature and air stability, caesium azide (CsN3) doped NBphen has also been demonstrated as an efficient electron-injection layer (EIL) capable of replacing lithium fluoride (LiF) in such devices.

OLEDs utilising CsN3 -doped NBPhen as EIL exhibit significantly improved current density-luminance-voltage characteristics.

General Information

Product Details

*Sublimation is a technique used to obtain ultra pure-grade chemicals. For more details about sublimation, please refer to the sublimed Materials.

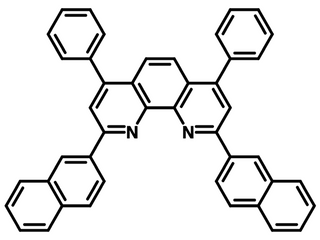

Chemical Strucutre

Device Structure(s)

Device structure	ITO (100 nm)/PEDOT:PSS (35 nm)/PLEXCORE UT-314* (20 nm)/PYD2:Cu(I)-iBuPyrPHOS* 1:1 (30 nm)/T2T (20 nm)/NBPhen (30 nm)/LiF (1 nm)/Al [1]
Colour	Yellow
Max. EQE	11.9%
Max. Current Efficiency	36.0 cd/A

Device structure	ITO/HATCN (10 nm)/NPB (30 nm)/TCTA (10 nm)/6 wt% PQ2Ir:TCTA:T2T (4:6) (25 nm)/T2T (10 nm)/NBPhen (40 nm)/LiF (1 nm)/Al (100 nm) [2]
Colour	Orange
Max. EQE	19.6%
Max. Current Efficiency	35.5 cd/A

Device structure	ITO/HATCN (10 nm)/NPB (30 nm)/BCzPh (10 nm)/6 wt% PQ2Ir:BCzPh:T2T (4:6) (25 nm)/T2T (10 nm)/NBPhen (40 nm)/LiF (1 nm)/Al (100 nm) [2]
Colour	Red
Max. EQE	20.6%
Max. Current Efficiency	36.0 cd/A

Device structure	ITO/MO3 (5 nm)/NPB (75 nm)/C545T:Alq3 (30 nm)/NBPhen (25 nm)/CsN3:NBPhen (5 nm)/Al [3]
Colour	Green
Max. Luminance	60,000 cd/m2
Max. Current Efficiency	10.4 cd/A

Device structure	ITO/HATCN (5 nm)/TAPC (30 nm)/TCTA (10 nm)/TRZ-p-ACRSA*:PO-01 (6 wt%, 25 nm)/T2T (10 nm)/NBPhen (40 nm)/LiF (1 nm)/Al (100 nm) [4]
Colour	Yellow
Max. Power Efficiency	115.2 lm W-1
Max. EQE	25.5%
Max. Current Efficiency	80.6 cd/A

Device structure	ITO/HATCN (5 nm)/TAPC (30 nm)/TCTA (10 nm)/TRZ-m-ACRSA*:PO-01 (6 wt%, 25 nm)/T2T (10 nm)/NBPhen (40 nm)/LiF (1 nm)/Al (100 nm) [4]
Colour	Yellow
Max. Power Efficiency	102.6 lm W-1
Max. EQE	25.2%
Max. Current Efficiency	79.8 cd/A
