CDBP, host material in blue, green, red and white OLED and TADF devices

High-purity and available online for priority dispatch, Sublimed ≥99.0%, 4,4'-Bis(9-carbazolyl)-2,2'-dimethylbiphenyl, CAS No. 120260-01-7

CDBP has a large bandgap (E = 3.4 eV) and a high triplet energy level (T1 = 3.0 eV). It is used as a fluorescent and phosphorescent host material in blue, green, red and white OLED and TADF devices.

The high triplet energy level of CDBP is caused by the steric twisting from the methyl groups (in the 2 and 2′ position) of the biphenyl core. Compared to CBP and mCBP, CDBP has higher tendency to form excimers due to the localisation of the of the excitation onto the both ends of the carbazole units.

CDBP can also function as an exciton-blocking layer - it can block excitons migrating from the emitting layer into the hole-transport layer.

General Information

Product Details

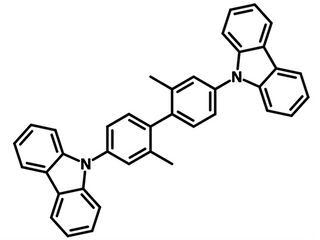

Chemical Structure

Device Structure(s)

Device structure	ITO (50 nm)/TAPC (70 nm)/CDBP (10 nm)/6 wt% CCX-II*:PPF (20 nm)/PPF (10 nm)/BmPyPhB (30 nm)/ Liq (1 nm)/Al (80 nm) [1]
Colour	Blue
Max. Power Efficiency	35.9 lm W−1
Max. Current Efficiency	41.1 cd/A
Max. EQE	25.9%

Device structure	ITO/NPB (60 nm)/4% 1*:CDBP (20 nm)/TAZ (40 nm)/LiF (1 nm)/Al (100 nm) [2]
Colour	Green
Power Efficiency@100 cd/m2	36.6 lm W−1
Current Efficiency@100 cd/m2	63.0 cd/A
EQE@100 cd/m2	16.3%

Device structure	ITO/NPB (40 nm)/6% Ir(btp)2(acac):CDBP (10 nm)/4%1*:CDBP (4 nm)/12% FIrPic:CDBP (5 nm)/TAZ (40 nm)/LiF (1 nm)/Al (100 nm) [2]
Colour	White
Power Efficiency@100 cd/m2	18.5 lm W−1
Current Efficiency@100 cd/m2	34.2 cd/A
EQE@100 cd/m2	13.2%

Device structure	IITO/NPB (30 nm)/TcTa (5 nm)/CDBP:1* (20%, 8 nm)/CDBP (3 nm)/CDBP:BCzVBi (10%, 5 nm)/TPBi (40 nm)/LiF (1 nm)/Al (100 nm) [3]
Colour	White
Power Efficiency@100 cd/m2	16.9 lm W−1
Current Efficiency@100 cd/m2	29.1 cd/A
EQE@100 cd/m2	11.7%

Device structure	ITO (120 nm)/MoO3 (1 nm)/CDBP (35 nm)/20 wt% Ir(III) compound 3*:CDBP (15 nm)/TPBi (65 nm)/LiF (1 nm)/Al (100 nm) [4]
Colour	Blue
Max. Power Efficiency	23.9 lm W−1
Max. Current Efficiency	22.2 cd/A
Max. Luminance	4,269 cd/m2

Device structure	ITO/TAPC (40 nm)/CDBP (10 nm)/CDBP:PO-T2T (2:1):1 wt% AnbTPA* (14 nm)/CDBP:PO-T2T (3:1, 6 nm)/CDBP:PO-T2T(1.5:1):10 wt% 2CzPN (10 nm)/PO-T2T (45 nm)/LiF (1 nm)/Al (100 nm) [5]
Colour	White
Max. Power Efficiency	46.2 lm W−1
Max. Current Efficiency	36.8 cd/A
Max. EQE	19.2%
