Ir(MDQ)2(acac) has a 2-methyldibenzo[f,h]quinoxaline ligand that coordinates with the iridium metal center via the formation of Ir-N and Ir-C bonds.

Ir(MDQ)2(acac) is another family member of iridium complexes, which are the most effective phosphorescent emitters employed in OLEDs. Devices based on Ir(MDQ)2(acac) emit orange-red light, with a maximum emission of 600-614 nm. OLEDs with Ir(MDQ)2(acac) as an emitting layer material give great brightness and exceedingly-high external quantum, current, and power efficiencies.

General Information

Product Details

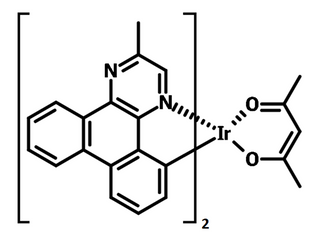

Chemical Structure

Device Structure(s)

Device structure	ITO/MoO3 (3 nm)/TAPC (40 nm)/Ir(MDQ)2(acac) (2 wt%):26DCzPPy (10 nm)/TmPyPB (40 nm)/LiF (1 nm)/Al (100 nm) [1]
Colour	Red
Max. Power Efficiency	24.39 lm W−1
Max. Current Efficiency	35.2 cd/A
Max. EQE	12.3%

Device structure	ITO/MoO3 (3 nm)/TAPC (40 nm)/Ir(MDQ)2(acac) (2 wt%):TcTa (10 nm)/Ir(MDQ)2(acac) (2 wt%):26DCzPPy (10 nm)/TmPyPB (40 nm)/LiF (1 nm)/Al (100 nm) [1]
Colour	Red
Max. Power Efficiency	40.19 lm W−1
Max. Current Efficiency	44.76 cd/A
Max. EQE	15.5%

Device structure	ITO/HAT-CN (10 nm)/TAPC (45 nm)/TCTA (10 nm)/Ir(MDQ)2(acac) (0.02 nm)/Ir(ppy)2(acac) (0.02 nm)/FIrpic (0.3 nm)/TmPyPb (40 nm)/ Liq (2 nm)/Al (120 nm) [2]
Colour	White
Max. Power Efficiency	46.1 lm W−1
Max. Current Efficiency	45.5 cd/A
Max. EQE	17.6%

Device structure	ITO/HAT-CN (10 nm)/TAPC (45 nm)/TCTA (7 nm)/Ir(ppy)2(acac) (0.02 nm)/FIrpic (0.3 nm)/TCTA (3 nm)/ Ir(MDQ)2(acac) (0.02 nm)/TmPyPb (3 nm)/Ir(ppy)2(acac) (0.02 nm)/FIrpic (0.3 nm)/TmPyPb (37 nm)/Liq (2 nm)/Al (120 nm) [2]
Colour	White
Max. Power Efficiency	43.1 lm W−1
Max. Current Efficiency	44.0 cd/A
Max. EQE	17.2%

Device structure	NPB (50 nm)/Ir(MDQ)2(acac):CBP(5.7%, 30 nm)/T PBI (15 nm)/Alq (35 nm) [3]
Colour	Red
Max. Power Efficiency	13.7 lm W−1
Max. Current Efficiency	26.2 cd/A
Max. EQE	12.4

Device structure	ITO/HAT-CN (10 nm)/SAFDPA (45 nm)/ SAFDPA:Bphen (1:1, w/w):Ir(MDQ)2(acac) (2 wt %, 20 nm)/Bphen (45 nm)/Liq (2 nm)/Al (120 nm) [4]
Colour	Reddish-Orange
Max. Power Efficiency	31.8 lm W−1
Max. Current Efficiency	32.0 cd/A
Max. EQE	10.7%
