9,10-Bis[N,N-di-(p-tolyl)-amino]anthracene, TTPA, is commonly used as a green dopant material in TADF-OLED devices.

Bearing two triarylamine units, TTPA is also electron-rich in nature. It can be used as a hole-transporting material for OLED, OPV, and perovskite solar cell applications.

General Information

Product Details

*Sublimation is a technique used to obtain ultra pure-grade chemicals. For more details about sublimation, please refer to the Sublimed Materials.

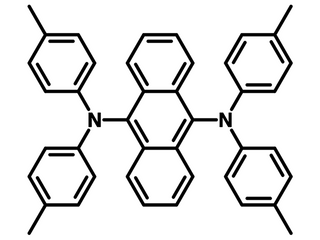

Chemical Structure

Device Structure(s)

Device structure	ITO/α-NPD (30 nm)/DPEPO (10 nm)/TPBi (40 nm)/1 wt% DBP:10 wt% TTPA:mCP (8 nm)/mCP (2 nm)/DMAC-DPS (7.5 nm)/LiF (0.5 nm)/Al (100 nm) [1]
Colour	White
Max. EQE	12.1%
Max. Power Efficiency	22 lm W-1

Device structure	ITO/TAPC (35 nm)/1 wt%-TTPA:50 wt%-ACRXTN:mCP (15 nm)/TPBi (65 nm)/LiF (0.8 nm)/Al (100 nm) [2]
Colour	Green
Max Current Efficiency	45 cd/A
Max EQE	15.8%
Max. Power Efficiency	47 lm W-1

Device structure	ITO/MoO3 (2 nm)/TAPC (40 nm)/TCTA (10 nm)/CzSi (3 nm)/CzSi:Pd-B-1* (10%):TTPA (1%) (20 nm)/TSPO1 (10 nm)/TmPyPb (40 nm)/LiF (1.2 nm)/Al (150 nm) [3]
Colour	Green
Max Current Efficiency	38.85 cd/A
Max EQE	10.41%
Max. Power Efficiency	38.14 lm W-1
