CAS Number 502693-09-6
Z-907 dye, (cis-Ru(H2dcbpy)(dnbpy)(NCS)2, where the ligand H2dcbpy is 4,4′-dicarboxylic acid-2, 2′-bipyridine and dnbpy is 4,4′-dinonyl-2,2′-bipyridine, is amphiphilic in nature while the introduction of the two hydrophobic alkyl chains on the bipyridyl ligand is critical to provide an insulating barrier to avoid charge carrier recombination and also help enhance thermal stability.
It was reported that DSSC with Z907 and hexadecyl phosphonic acid adsorbing maintained 7% efficiency for as long as 1,000 hours ageing test at 80°C [1].
| Full name | cis-Bis(isothiocyanato)(2,2′-bipyridyl-4,4′-dicarboxylato)(4,4′-di-nonyl-2′-bipyridyl)ruthenium(II) |
| Synonyms | Ruthenium Dye Z907 |
| Chemical formula | C42H52N6O4RuS2 |
| Molecular weight | 870.10 |
| CAS number | 502693-09-6 |
| HOMO / LUMO | HOMO = -5.4 eV, LUMO = -3.8 eV |
| Solubility | Acetonitrile/tert-butanol (v/v = 1:1); DMSO |
| Classification / Family | Transition metal complex, Ruthenium complex, Bipyridyl ligands, Energy materials, Dye-sensitized solar cells DSSC) materials, Donor materials, OPV materials. |

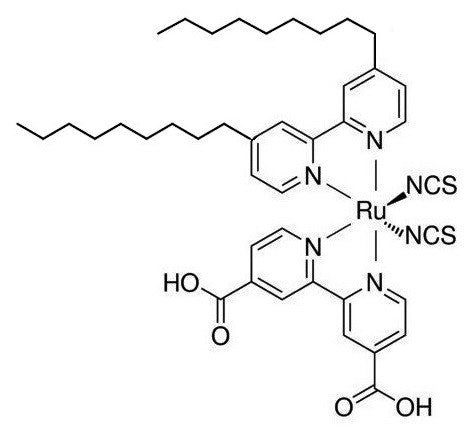

Chemical structure of Z907 Dye; Chemical formula: C42H52N6O4RuS2
| Purity | >95% |
| Melting point | Melting point/range: 196 °C |
| Appearance | Black crystalline powder |
