产品详情

C106 Dye is ruthenium complex dye developed for high-efficiency dye-sensitized solar cells (DSSC). Power conversion efficiencies of 11.7-12.1% have achieved in high-efficiency dye-sensitized solar cells under air-mass 1.5G simulated sunlights [1-5].

C106 Dye provides higher degree of conjugation to the ligand which in return enhances its overall optical absorption capacity. With hexyl groups enhancing its hydrophobic nature, C106 Dye not only increases electron donating property to the core of the metallic centre, but also provides steric hindrance to minimize packing and agglomeration behaviour thus higher overall device performance could be expected.


Full name Cis-Bis(isothiocyanato)(2,2′-bipyridyl-4,4′-dicarboxylato)(4,4′-bis(5-(hexylthio)thiophen-2-yl)-2,2′-bipyridyl)ruthenium(II)
Synonyms C106 Dye
Chemical formula C44H44N6O4RuS6
Molecular weight 1014.32
CAS number 1152310-69-4
HOMO / LUMO HOMO = -5.05 eV, LUMO = -3.38 eV
Solubility Acetonitrile and tert-butyl alcohol (volume ratio: 1/1) [1]
Classification / Family Transition metal complex, Ruthenium complex, Bipyridyl ligands, Energy materials, Dye-sensitized solar cells DSSC) materials, Donor materials, OPV materials.

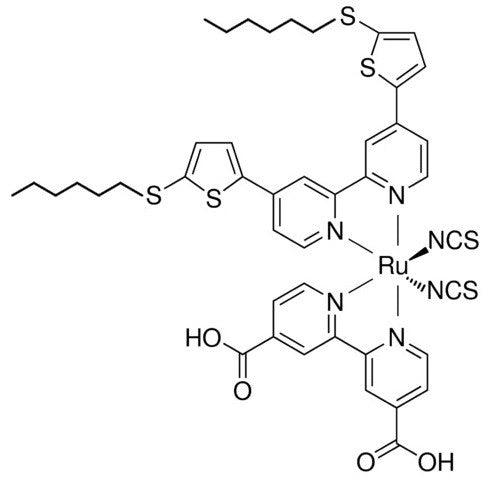

chemical structure of C106 DyeChemical structure of C106 Dye; Chemical formula: C44H44N6O4RuS6.
