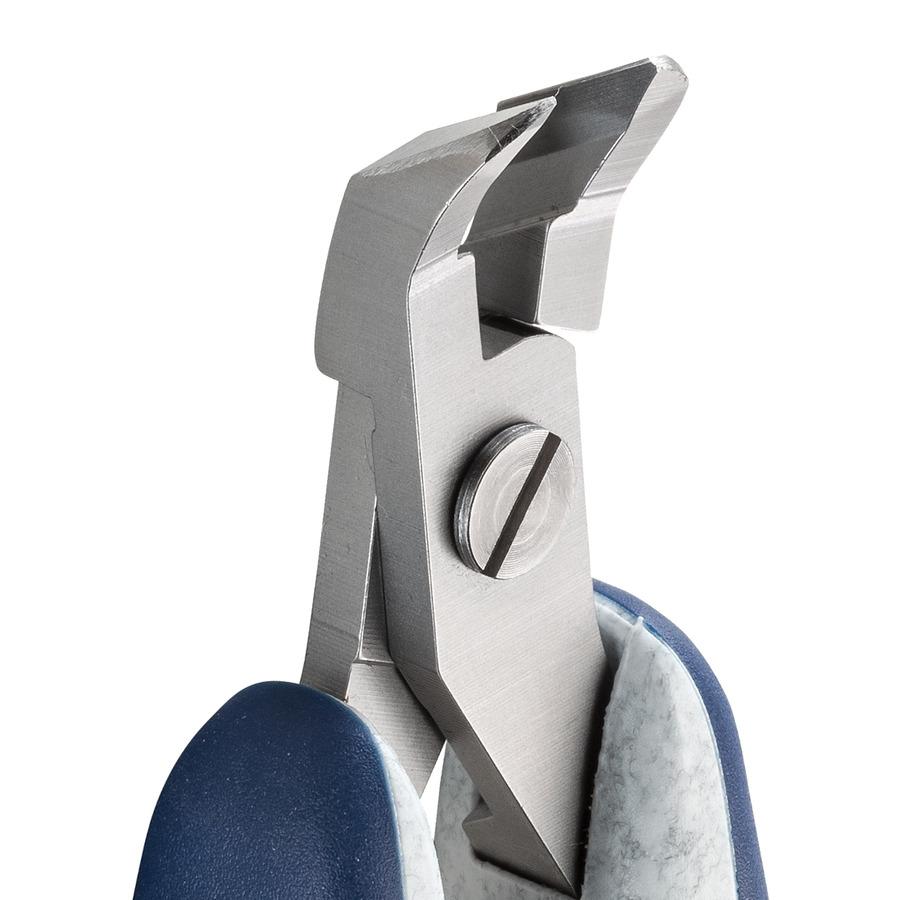

The 5250 is a high precision cutter belonging to the oblique head cutter family. The angled blade geometry supports the operator's ergonomics during the cut. The full-flush cutting edge is suitable to perform very clean cuts on small size material. The 5250 is equipped with an ESD Ergo-tek slim handle which allows an excellent grip, suitable to environments and to components susceptible to electrostatic discharge. The blades are hardened to 67HRC hardness.
Angled Tip
S Head Size
Flush Cut
Up to 16 AWG Cutting Cap
4.9" OAL
Specifications
Brand: Techni-Pro
ESD Safe: Yes
Head Style: Oblique Head
Maximum Cutting Capacity: 16 AWG
Cut: Flush
Alternate Product Number: 5250
Cutting Wire Range: 32-17 AWG
Ergonomic: Yes
Finish: Satin Anti-Glare
Handle Material: ESD Safe Thermoplastic Elastomer TPE + Polypropylen compound PP
Handle Type: Ergonomic
Head Thickness: 0.25"
Head Width: 0.39"
Jaw Length: 0.57"
Length: 125 mm
Material: 100Cr6
Overall Length: 4.9"
Series: Infinity Elite Series
