Adjustable Film Applicator
Quick and easy coating thickness adjustment for a wide range of wet film coatings with a single instrument. Accurately control the gap height of your applicator down to the micron level, with both analogue and digital height readout options. Select the film applicator that is right for you with coating widths ranging from 50mm to 200mm.

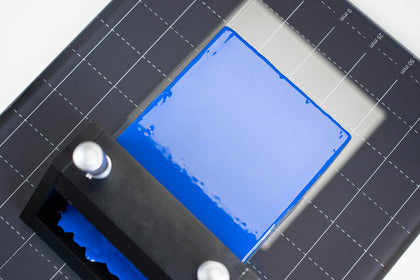

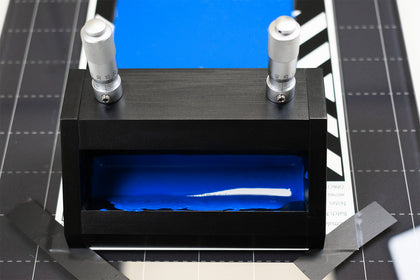

The specially designed gap slot optimizes flow of solution into the gap and comes with an integrated slurry spreader to ensure that the slurry is retained within the applicator and distributed across the full width.
| Material | Aluminium (7075) hard anodization |
|---|---|
| Coating Width | 100 mm, 200 mm, or custom (50 mm to 200 mm) |
| Gap Height | 0 mm to 10 mm |
| Manual | Digital | |
|---|---|---|
| Gauge Resolution | 10 µm | 1 µm |
| Gauge Accuracy | 4 µm | 3 µm |

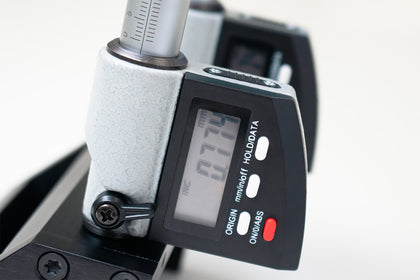

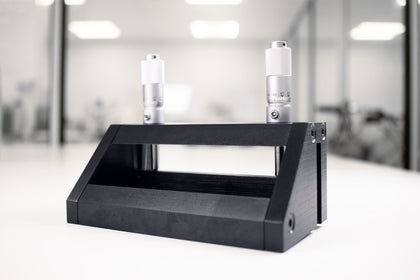

Precision Micrometer Heads
A choice of analogue or digital micrometer heads provide high accuracy blade positioning. For improved reproducibility and efficiency, the blade is calibrated to the zero position of the micrometer gauge. Plus, the rounded tungsten carbide tip provides high wear resistance for the longevity of your system.

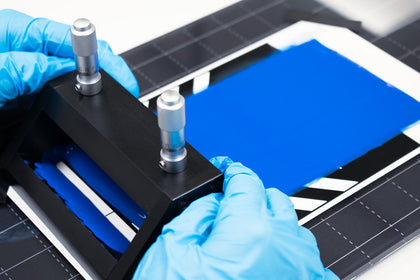

Manual or Automatic Coating
The adjustable film applicator is suitable for both manual and automatic coating techniques. Manual coating processes are simple and budget-friendly, or you can remove the risk of human error by automating your coating process with the Ossila Automatic Film Applicator.
Resistant Materials
The aluminium applicator has a layer of hard anodization on the surface as standard. This hard anodization provides a chemically resistant outer surface, making the applicator ideal for a wide range of coating solutions. Resistant to abrasions, this applicator can be used again and again to reliable produce consistent coatings.
Customized Film Applicators
Customized instruments for your film applicator needs, including coating widths between 50mm and 200mm for a fixed price. For wider film applicators and advanced materials, such as stainless steel, please contact us for more information.
