Graphene Sheet
Graphene sheet (CAS number 1034343-98-0), also referred to as graphene paper, is the assembly of individual graphene nanosheets into macroscopic structure to form paper-like material. The achieved freestanding graphene sheet shows a unique combination of outstanding properties such as high mechanical strength, large surface area, superior electrical conductivity, and stability in electrochemical environment, outperforming many other carbon substrates.
As a functional material, graphene sheet does not only act as a conducting agent, but also as a current collector. This makes graphene sheet, a promising base flexible electrode material for energy storage devices with significantly improved performances in energy density, power density and better life cycle compared to non-flexible conventional electrode architecture.
| CAS Number | 1034343-98-0 |
|---|---|
| Chemical Formula | C |
| Full Name | Graphene Sheet |
| Purity | >99% |
| Form |
Gray to black sheet |
| Synonyms |
Graphene paper, Graphene film, Graphene foil |
| Classification or Family |
Graphene, Graphene Film, 2D Materials, Carbon Nanomaterials |
| Product Code | M2371A1 | M2371B1 |
|---|---|---|
| Thermal Conductivity In Plane | 550 W/mK | 550 W/mK |
| Resistivity | Electrical resistivity at surface 0.06 Ω/sq | Electrical resistivity at surface 0.06 Ω/sq |
| Conductivity | Electrical Conductivity In Plane 3,700 S/cm | Electrical Conductivity In Plane 3,700 S/cm |
| Tensile Strength | 10 MPa | 10 MPa |
| EMI Shielding | EMI Shielding: 53 dB at 30 MHz, 58 dB at 1.5 GHz | EMI Shielding: 53 dB at 30 MHz, 58 dB at 1.5 GHz |
| Density | 1.8 g/cm3 | 1.8 g/cm3 |
| Size | 10 cm × 10 cm | 5 cm × 5 cm |
| Thickness | 35 μm | 35 μm |

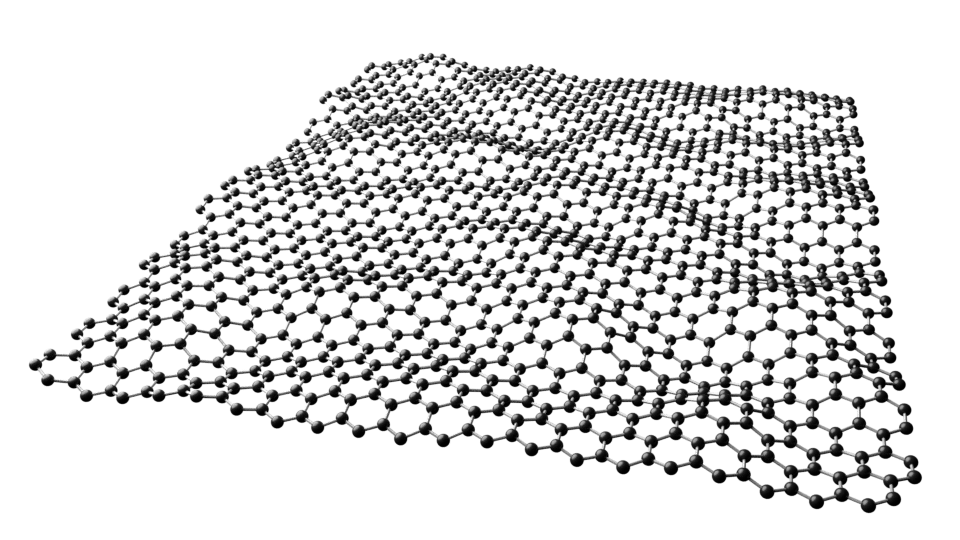

Illustrative structure of a graphene monolayer, CAS 7782-42-5
