General Information

---

Full name	Poly [[6,7-difluoro[(2-hexyldecyl)oxy]-5,8-quinoxalinediyl]-2,5-thiophenediyl ]]
Synonyms	PTQ10
Chemical formula	(C28H36F2N2OS)n
CAS number	2270233-86-6
UV-Vis absorption	λmax 556 nm, 600 nm in CB as-cast film
HOMO / LUMO	HOMO = -5.54 eV, LUMO = -2.98 eV [1]
Solubility	o-xylene, chloroform, chlorobenzene and dichlorobenzene
Processing solvent	o-xylene, chloroform, chlorobenzene
Classification / Family	Organic semiconducting materials, Wide band-gap polymers, Organic Photovoltaics, Polymer solar cells, NF-PSCs, All-polymer solar cells (all-pscs), Clean energy materials.

Chemical Structure

---

Chemical structure of PTQ11

Characterisations

---

UV-Vis Absorption

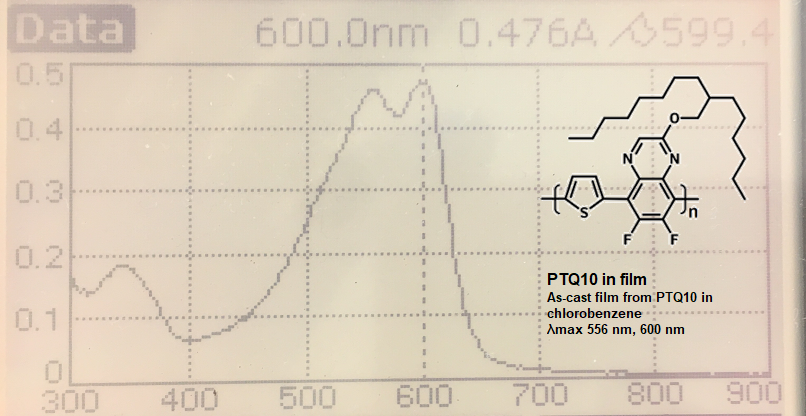

UV-Vis absorption of of PTQ10 in film (as-cast film from PTQ10 solution in chlorobenzene on glass).

Cyclic Voltammetry

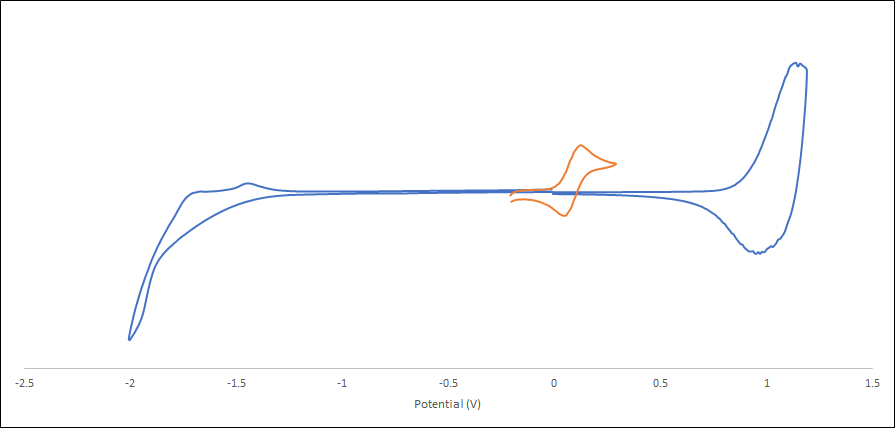

Cyclic voltammograms of the PTQ10 film on platinum electrode in 0.1M Bu4NClO4 in acetonitrile at a scan rate of 100 mV s−1.

The cyclic voltammograms (CV) measurements were recorded on Ossila Potentiostat by using a three-electrode system with platinum disc as the working electrode, platinum wire as the counter electrode, Ag/Ag+ electrode as the reference electrode with a scanning rate of 100 mV/s in a 0.1 M tetrabutylammonium perchloroate Bu4NClO4) solution. The potential of Ag/Ag+ reference electrode was internally calibrated by using ferrocene/ferroncenium (Fc/Fc+) as the redox couple.
