Luminosyn™ Polymers, Materials, OFET & OLED Polymer Materials, Semiconducting Polymers
P4T2F-HD belongs to the polythiophenes (PTs) family with either fluoro or alkyl groups on the main backbone of the polymer.
Fluorination can promote stronger interchain interaction to enhance polymer crystallinity. While P3HT can form completely mixed bulk heterjunction (BHJ) films with non-fullerene acceptors, P4T2F-HD has relatively low miscibility with them, i.e. Y6-BO (BTP-4F-12), which enables the blending active materials to form desired packing and nanoscale phase separation morphology for efficient OSCs.
Record device performance with PCE of 13.65% was achieved by using an active layer materials with P5TCN-F25 as the polymer donor and Y6-BO as the acceptor by the following device structure with excellent storage and thermal stability.
Device structure: ITO/ZnO/C60-SAM/P4T2F-HD:Y6-BO/MoO3/Ag [1].
| Thickness (nm) | VOC (V) | JSC (mA cm-2) | FF (%) | PCE (%) |
| 100 | 0.72 | 24.39 | 75.30 | 13.34 |
Luminosyn™ P4T2F-HD is now available.
High purity
P4T2F-HD is purified by Soxhlet extraction with methanol, hexane and chlorobenzene under an argon atmosphere
Batch-specific GPC data
Batch specific GPC data is always available for your thesis or publication
Large-quantity orders
Plan your experiments with confidence with polymers from the same batch
| Full name | Poly(3,3′-dihexyldecyl-4'',4'''-difluoro[2,2′:5′,2′′:5′′,2′′′-quaterthiophene]-5,5′′′-diyl) |
| Synonyms | PQT16-2F, PQTHD-2F, Poly(4,4′-difluoro-3'',3'''-difluoro[2,2′:5′,2′′:5′′,2′′′-quaterthiophene]-5,5′′′-diyl) |
| Chemical formula | (C48H70F2S4)n |
| CAS number | n.a. |
| HOMO / LUMO | HOMO = -5.35 eV, LUMO = -3.43 eV [1] |
| Melting Point | Tm = 182 °C |
| Solubility | Chloroform, chlorobenzene and dichlorobenzene |
| Processing solvent | Chloroform, chlorobenzene |
| Classification / Family | Polythiophenes, Organic semiconducting materials, Medium band-gap polymers, Organic Photovoltaics, OFETs, Polymer solar cells, NF-PSCs. |

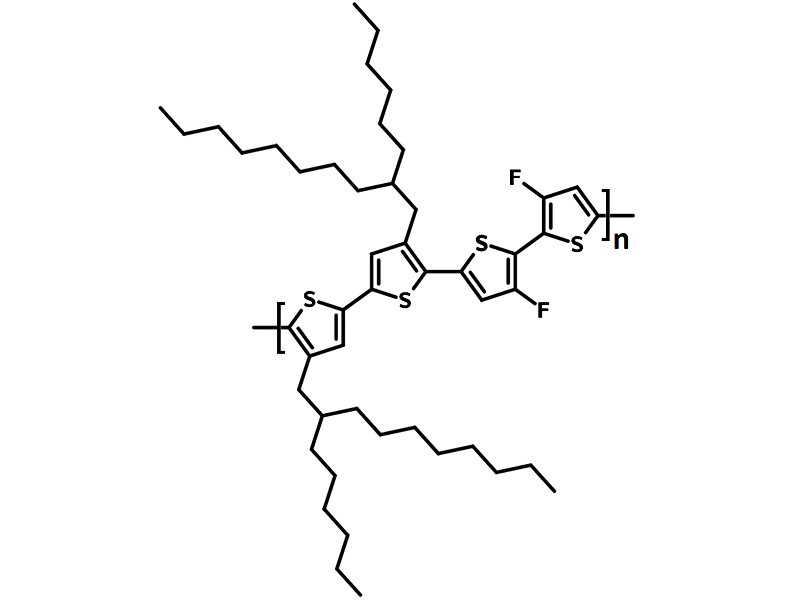

Chemical structure of P4T2F-HD.专业代理国外知名镊子品牌
