Luminosyn™ Polymers, Materials, Semiconducting Polymers
P5TCN-F25 is a derivative of polythiophenes (PTs) with cyano, fluoro and alkyl groups on the main backbone of the polymer.
The branched 2-hexyldecyl alkyl chains are there to promote the solubility of the polymer and backbone fluorination is believed to lead to stronger interchain interaction, improved polymer crystallinity, and appropriate miscibility with fullerene or non-fullerene acceptors. Meanwhile, the cyano-group on the thiophene ring can not only down-shift the energy levels but also improve the crystallinity of the resulting polymers.
Outstanding device performance with PCE of 17.2% was achieved by using a ternary blend of active layer materials with P5TCN-F25 as the polymer donor and mixed non-fullerene Y6 and fullerene PC71BM as the acceptors by the following device structure.
Device structure: ITO/PEDOT:PSS/P5TCN-F25:Y6:P71CBM/PNDIT-F3N/Ag [1].
| Thickness (nm) | VOC (V) | JSC (mA cm-2) | FF (%) | PCE (%) |
| 100 | 0.8 | 27.55 | 77.7 | 17.2 |
Luminosyn™ P5TCN-F25 is now available.
High purity
P5TCN-F25 is purified by Soxhlet extraction with methanol, hexane and chlorobenzene under an argon atmosphere
Batch-specific GPC data
Batch specific GPC data is always available for your thesis or publication
Large-quantity orders
Plan your experiments with confidence with polymers from the same batch
| Full name | Poly{[3,3''-bis(2-hexyldecyl)-3'(4')-cyano[2,2':5',2'':5'',2''':5''',2''''-quinquethiophene]-5,5''''-diyl]-alt-[3,3''-bis(2-hexyldecyl)-3'(4')-cyano-3''',4''''-difluoro[2,2':5',2'':5'',2''':5''',2''''-quinquethiophene]-5,5''''-diyl]} |
| Synonyms | P5TCN-Fx |
| Chemical formula | [(C53H73NS5)0.75(C53H71F2NS5)0.25]n |
| CAS number | n.a. |
| HOMO / LUMO | HOMO = -5.44 eV, LUMO = -3.65 eV [1] |
| Solubility | Chloroform, chlorobenzene and dichlorobenzene |
| Processing solvent | Chloroform, chlorobenzene |
| Classification / Family | Organic semiconducting materials, Low band-gap polymers, Organic Photovoltaics, Polymer solar cells, NF-PSCs. |

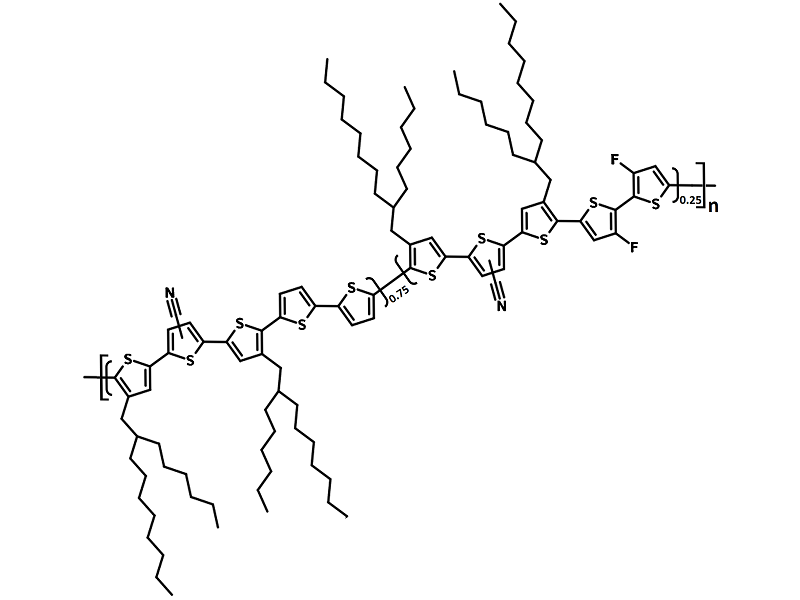

Chemical structure of P5TCN-F25.专业代理国外知名镊子品牌
