Luminosyn™ Polymers, Materials, OPV Polymers, Semiconducting Polymers
J52-Cl (CAS number 1887136-01-7) is the chlorinated version of J52, with chlorine atoms introduced on the side chain of the polymer. It is believed that chlorination can down-shift the energy levels more effectively, modify the inter-molecular aggregation to enhance the crystallinity of polymer, and tune the surface energy for film morphology optimisation. NFA solar cell devices with an outstanding device performance PCE of 12.18% have been achieved by using J52-Cl:IT-4F blend as active layer materials with ferrocene as an additive, with the device structure: ITO/ZnO/J52-Cl:IT-4F (6 wt% Ferrocene)/MoO3/Ag [2].
| Thickness (nm) | VOC (V) | JSC (mA cm-2) | FF (%) | PCE (%) |
| n.a. | 0.836 | 20.39 | 69 | 12.18 |
Luminosyn™ J52-Cl is now available.
High purity
J52-Cl is purified by Soxhlet extraction with methanol, acetone, hexane and chlorobenzene under an argon atmosphere
Batch-specific GPC data
Batch specific GPC data is always available for your thesis or publication
Large-quantity orders
Plan your experiments with confidence with polymers from the same batch
| Full name | Poly[[5,6-difluoro-2-(2-hexyldecyl)-2H-benzotriazole-4,7-diyl]-2,5-thiophenediyl[4,8-bis[5-(2-ethylhexyl-3-chloro)-2-thienyl]benzo[1,2-b:4,5-b']dithiophene-2,6-diyl]-2,5-thiophenediyl] |
| Synonyms | J52-2Cl, PJ52-Cl |
| Chemical formula | (C64H75Cl2F2N3S6)n |
| CAS number | N/A |
| HOMO / LUMO | HOMO = 5.38 eV, LUMO = 3.44 eV [1] |
| Solubility | chloroform, chlorobenzene and dichlorobenzene |
| Processing solvent | chloroform, chlorobenzene |
| Classification / Family | Organic semiconducting materials, Low band-gap polymers, Organic Photovoltaics, Polymer solar cells, NF-PSCs, All-polymer solar cells (all-pscs). |

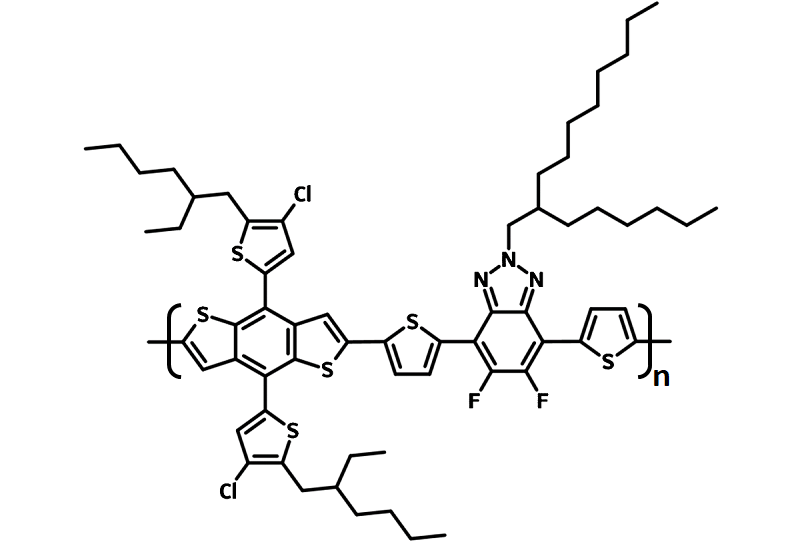

Chemical structure of polymer J52-Cl专业代理国外知名镊子品牌
