General Information

---

Full name	Poly[(thiophene)-alt-(6,7-difluoro-2-(2-hexyldecyloxy)-3-methylquinoxaline]
Synonyms	PTQ11
Chemical formula	(C29H38F2N2OS)n
CAS number	n.a.
Absorption*	λmax 548 nm, 590 nm in film (as-cast film from PTQ11 in chlorobenzene solution)
HOMO / LUMO	HOMO = -5.52 eV, LUMO = -2.76 eV, Eg = 1.92 eV [1]
Solubility	o-xylene, chloroform, chlorobenzene and dichlorobenzene
Processing solvent	o-xylene, chloroform, chlorobenzene
Classification / Family	Organic semiconducting materials, Wide band-gap polymers, Organic Photovoltaics, Polymer solar cells, NF-PSCs, All-polymer solar cells (all-pscs), Green energy materials.

* Measurable with an optical spectrometer, see our spectrometer application notes.

Chemical Structure

---

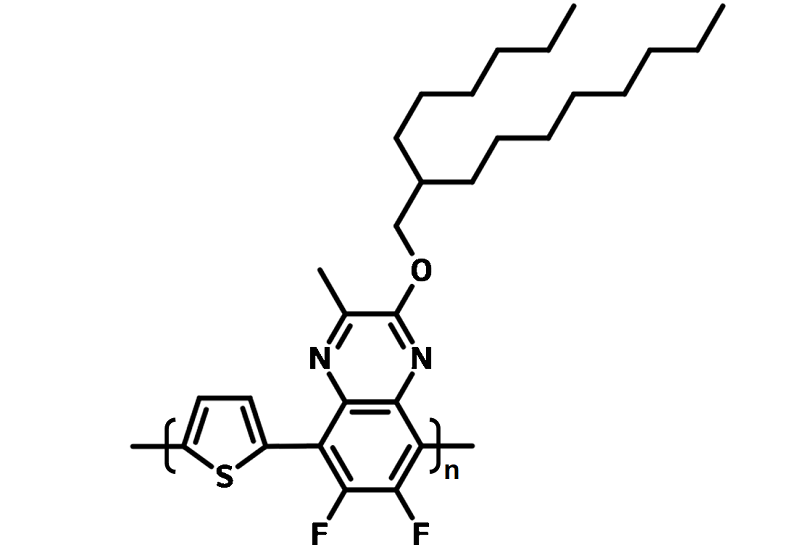

Chemical structure of PTQ11.

Characterisations

---

UV-Vis Absorption

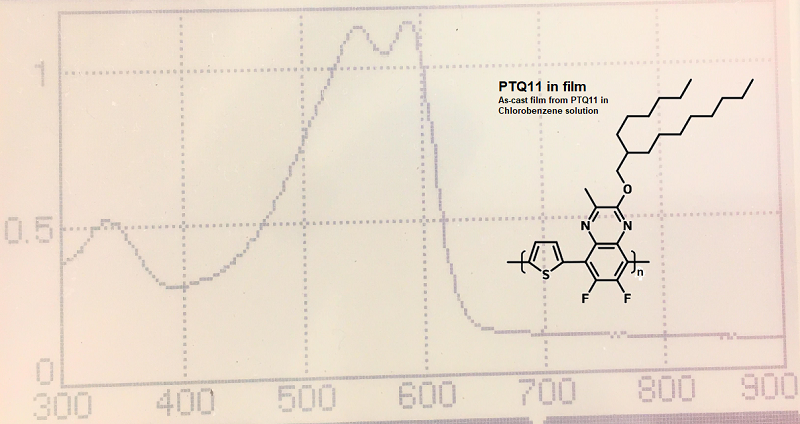

UV-Vis absorption of of PTQ11 in film (as-cast film from PTQ11 solution in chlorobenzene on glass).

Cyclic Voltammetry

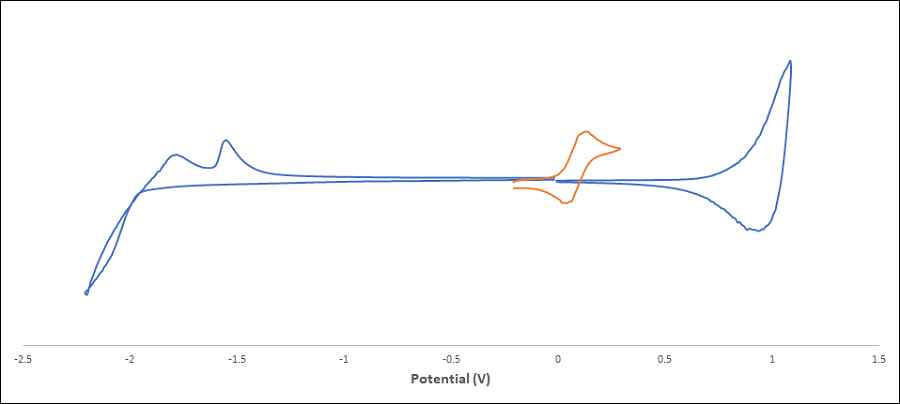

Cyclic voltammograms of the PTQ11 film on platinum electrode in 0.1M Bu4NClO4 in acetonitrile at a scan rate of 100 mV s−1.

The cyclic voltammograms (CV) measurements were recorded on Ossila Potentiostat by using a three-electrode system with platinum disc as the working electrode, platinum wire as the counter electrode, Ag/Ag+ electrode as the reference electrode with a scanning rate of 100 mV/s in a 0.1 M tetrabutylammonium perchloroate Bu4NClO4) solution. The potential of Ag/Ag+ reference electrode was internally calibrated by using ferrocene/ferroncenium (Fc/Fc+) as the redox couple.
