Cathode Interlayer Materials (CIMs), Materials, Organic Conductors
PDINN (CAS number 1020180-01-1), while compared with PDINO, can provide better contact with the electrodes and non-fullerene active layers to give higher conductivity. PDINN also can reduce the work functions (WFs) of the metal cathode, making it a better candidate to use as cathode interlayer materials (CIMs) in non-fullerene OSCs with air stable metal cathode, such as Ag and Cu, to improve the device stability.
With solubility of 26.7 mg/ml in methanol without any assistance from acetic acid, PDINN has better solubility than most of the CIMs such as PFN and PDIN which needs acetic acid to make a clear solution. PDINN also shows a better interfacial compatibility to a wider range of active layer materials to form better quality films for OSCs devices than PDINO.
Device structure: ITO/PEDOT:PSS/PM6:Y6/PDINN (9 nm)/Ag [2]
| Thickness (nm) | VOC (V) | JSC (mA cm-2) | FF (%) | PCE (%) |
|---|---|---|---|---|
| N/A | 0.847 | 25.89 | 78.59 | 17.23 |
| CAS Number | 1020180-01-1 |
|---|---|
| Chemical Formula | C40H46N6O4 |
| Purity | >98% (1H NMR) |
| Full Name | N,N'-Bis{3-[3-(Dimethylamino)propylamino]propyl}perylene-3,4,9,10-tetracarboxylic diimide |
| Molecular Weight | 674.83 g/mol |
| HOMO / LUMO | HOMO = -6.02 eV LUMO = -3.78 eV [2] |
| Melting Point (DSC) | 240.1 °C (TGA, 5% weight loss) |
| Form | Deep red powder/crystals |
| Absorption | λmax 473 nm (film) |
| Solubility/Processing Solvents | Methanol, ethanol, trifluoroethanol |
| Synonyms |
BDMAPAP-PDI 2,9-Bis(3-((3-(dimethylamino)propyl)amino)propyl)anthra[2,1,9-def:6,5,10-d'e'f']diisoquinoline-1,3,8,10(2H,9H)-tetraone |
| Classification / Family | Perylene diimide (PDI), Cathode interlayer materials (CIMs), Organic semiconducting materials, Organic Photovoltaics, OLED, Small molecule electrolyte |

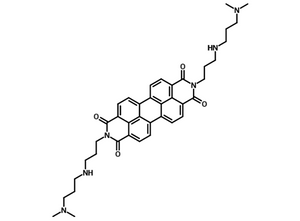

Chemical structure of PDINN, CAS 1020180-01-1
