Copper(II) phthalocyanine, CAS number 147-14-8, known as CuPc or pigment blue 15 , has been used as an electron donor with fullerene-C60 or phenyl-C61-butyric acid methyl ester (PCBM) in vacuum-deposited organic photovoltaics (OPV)[1]. Power conversion efficiency of about 1% has been achieved [2] and improved efficiency of 4% with pentacene-doped CuPc layer [3]. CuPc has also been used as a hole-injection material for light-emitting diodes. It has been reported that a thin CuPc layer may effectively enhance the hole injection from the anode to the emissive-polymer layer, resulting in a dramatic decrease of operating voltage of the device [4]. Device stability was achieved by depositing a copper phthalocyanine CuPc hole-injection layer HIL on the ITO anode.

The improved stability of the device could be contributed to the good match of its highest-occupied molecular orbital (HOMO) level to the work function of ITO, and the improved wetting property of organic materials on ITO. Moreover, CuPc has very weak absorption of light, with wavelengths from 400 to 500 nm, making it suitable for use in blue and green OLEDs. Effective electron-blocking was also observed for inorganic–organic hybrid perovskite solar cells when CuPc-doped Spiro-OMeTAD was used as the hole-transporting layer [5].

General Information

*Measurable with the Ossila USB Spectrometer

Product Details

Sublimation is a technique used to obtain ultra pure-grade chemicals. For more details about sublimation, please refer to the Sublimed Materials.

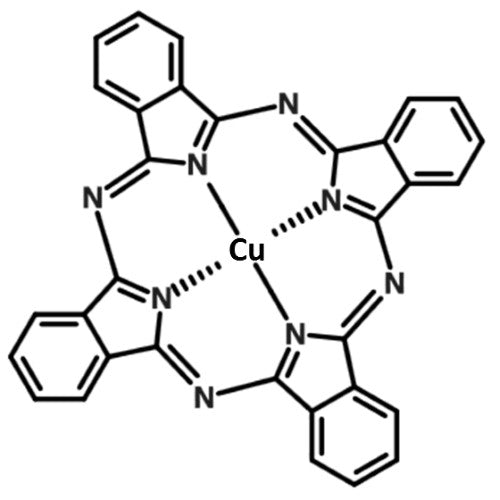

Chemical Structure
