Charge Transport Layer Materials, Electron Transport Layer Materials, High Purity Sublimed Materials
B4PymPm is an isomer to B2PymPm and B3PymPm. It has a 2-methylpyrimidine core structure with four pyridine pendants. It is electron-deficient and can be used in OLEDs and photovoltaics (e.g. perovskite solar cells) as an electron-transporting or hole-blocking layer material.
Due to its intermolecular hydrogen bonding, B4PymPm molecules self-assemble in a horizontal orientation - parallel to the substrate, with a significantly large anisotropy. This self-assembly gives high molecular stacking in films with high π-orbital overlaps, which can significantly enhance charge-carrier mobility and transport.
| CAS number | 1030380-51-8 |
|---|---|
| Full name | 4,6-Bis(3,5-di(pyridin-4-yl)phenyl)-2-methylpyrimidine, 4,6-Bis(3,5-di-4-pyridinylphenyl)-2-methylpyrimidine |
| Chemical formula | C37H26N6 |
| Molecular weight | 554.64 g/mol |
| Absorption | λmax 250 nm in DCM |
| Fluorescence | λmax 410 nm in Film |
| Synonyms | 4,6-Bis(3,5-di-4-pyridinylphenyl)-2-methylpyrimidine |
| HOMO/LUMO |
HOMO = −7.3 eV LUMO = −3.7 eV [6] |
| Classification / Family | Pyrimidine derivatives, Highly efficient light-emitting diodes, Organic electronics, Electron-transport layer (ETL) materials, Hole-blocking layer (HBL) materials, Sublimed materials. |
| Purity | Sublimed >99.0% (HPLC) |
|---|---|
| Melting point | 374 °C (lit.) |
| Appearance | White crystals/powder |
*Sublimation is a technique used to obtain ultra pure-grade chemicals. For more details about sublimation, please refer to the Sublimed Materials.

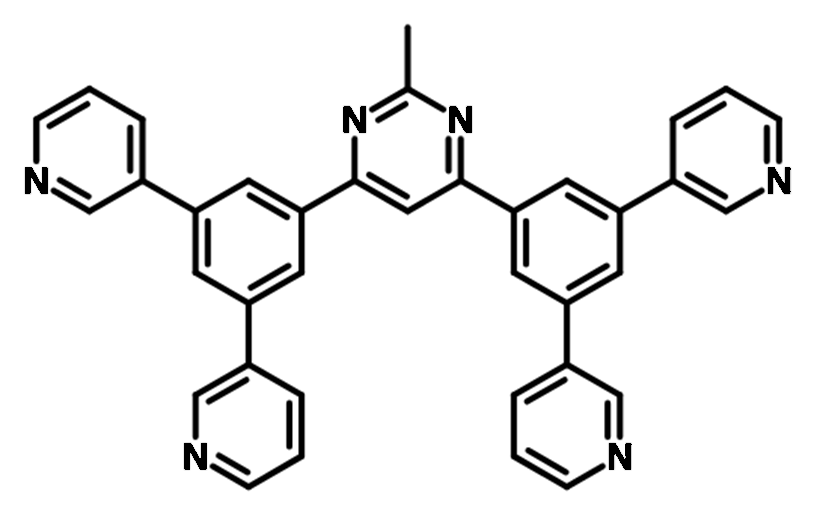

Chemical structure of B4PymPm专业代理国外知名镊子品牌
