NEW Dry Scroll Vacuum Pump Option for PELCO easiGlow™

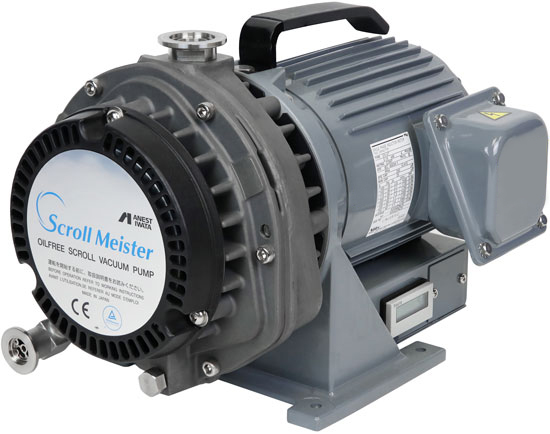

The ISP-90 Dry Scroll Pump is now available as an option, or upgrade, for the PELCO easiGlow™. Choosing this pump gives the benefit of oil free operation for customers looking to avoid oil in the lab, or to eliminate the need for oil changes.

This pump has an ultimate vacuum of 3.7 x 10-2 Torr and a pumping speed of 6.5 m3/hr (at 60Hz). It can be used with the easiGlow™ with the purchase of the PELCO easiGlow™ Connection Kit for ISP-90 Dry Pump (#92083-108). The Anti-Vibration Pad (#91020-29) is also recommended.

The ISP-90 is suitable for clean processes only. It should not be used with explosive, flammable, toxic, or corrosive substances or substances that contain chemicals, solvents, or particles.


Pumping Speed 6.5m3/hr, 108L/m, 3.2 cfm @ 60Hz
5.4m3/hr, 90L/m, 3.8 cfm @ 50Hz
Ultimate Vacuum 3.7 x 10-2 Torr (4.9 x 10-2 mbar)
Inlet Connection NW25
Exhaust Connection NW16
Operation Temperature 5 to 40°C (41 to 104°F)
Noise (dB)A ≦52
Dimensions 308 x 214 x 225mm
12.13 x 8.43 x 8.86" (L x W x H)
Weight 14kg (31lbs)
Supply Power 1 phase, 50-60 Hz,
100-115/200-230 VAC
