Introducing a NEW STANDARD in tissue slicing.

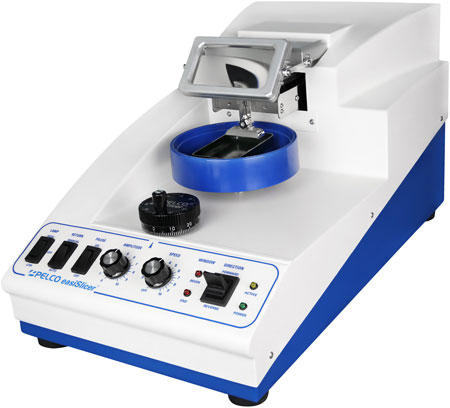

The PELCO easiSlicer™ introduces a new standard in vibratory slicing. It combines ease of operation, precise engineering and affordable pricing in a high quality instrument. The PELCO easiSlicer™ uses rigid construction and advanced engineering technologies to essentially eliminate backlash resulting in minimal Z-axis vibration normally associated with more expensive vibratory slicers. All operational controls are located on the front of the instrument, clearly labeled and sealed against moisture. The specimen tray is held securely in the polypropylene bath by a set of strong magnets. The bath is attached from the side with a unique spring-loaded base that locks onto the PELCO easiSlicer™ by simple pressure. The integrated bath and tray design allows them to move as a unit for sectioning thickness or height adjustment. The bath and tray can be easily separated for simple and fast clean-up, eliminating the risk of leaks and a cumbersome drain or hose.

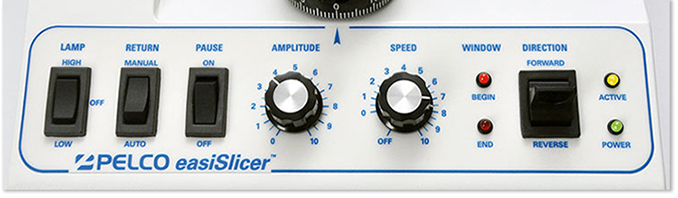

The amplitude and speed controls are conveniently mounted in the center of the control panel for ease of operation. The instrument is supplied with a newly designed lever tightening blade holder set at a 15° cutting angle that accepts all knife thicknesses from Feather^® blades to the thick Sapphire blade. Also available are blade holders for Feather^® blades offered in two fixed cutting angles: 18° and 21°. The specialized design of these blade holders provides a secure and rigid grasp of the cutting blade. Feather^® Blades are recommended for use with these 18° and 21° fixed cutting angle blade holders. The fixed cutting angle blade holders will accommodate other types of blades, but will not accept a Sapphire blade. The Sectioning Window Controls guide the user for precise cutting window control with indicator lights on the control panel.

The Magnifier and Light Assembly offers bright white LED lighting (no risk of high temperatures) with high or low settings, depending on the user’s need. The Magnifier can be moved out of the viewing path, if desired. The entire assembly operates smoothly on metal slides.

The large Section Thickness Knob is centrally located in the work area. The knob is labeled in microns and has a perceptible detent every 5 microns. One complete revolution of the knob is 100 microns. The entire bath and tray assembly is raised and lowered by this Section Thickness Knob. The PELCO easiSlicer™ has a Return Switch that provides the user with an option for Auto Return after each slice. In the Manual Return mode, the cutting will cease once the end of the section window has been reached. This allows the retraction of the specimen before the return of the blade in order to prevent damage to the specimen.

The PELCO easiSlicer™ comes equipped with tools and supplies to start cutting quality, consistent sections, right out of the box.

Features & Benefits

• Precision design for accurate, high quality sections with minimal z-axis vibration
• Novel bath design utilizes unique easy-locking base making it simple to clean
• Anodized specimen tray magnetically locks onto bath

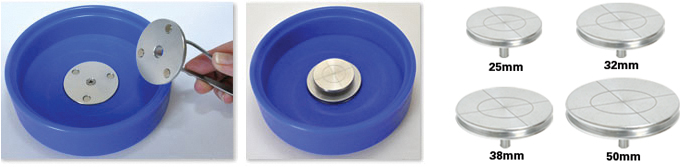

• Optional magnetic base for tissue mounts available
• Cuts sections down to 20 microns
• LED lights indicate active vibratory status and cutting window boundaries
• Adjustable Blade Holder utilizes compression lever release and tightening, 15º cutting angle. Securely holds the thinnest Feather^® blades to a Sapphire Blade.
• Optional Removable Blade Holders available for Feather^® blades at 18º and 21º preset angles.
• Fully assembled, ready to use
• Affordable pricing
• Universal power supply 100-240V, 50/60Hz

PELCO easiSlicer™ Specifications

Ordering Information for the PELCO easiSlicer™
