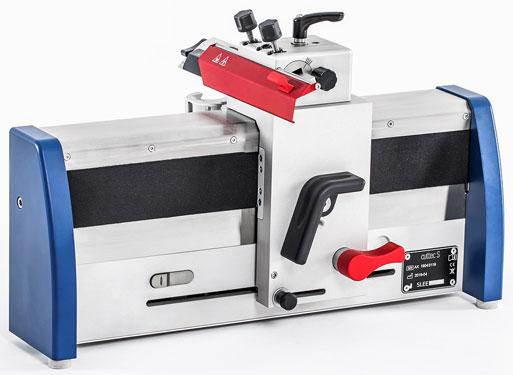

Cuttec S Manual Sliding Microtome

The Cuttec S Manual Sliding Microtome is designed for all applications in medical research, routine diagnostics, or materials science, always focusing on the needs of the user. The precise mechanisms together with the smooth operation contributes to high quality sections.

Key Features:

  • High quality sections
  • Safety features like the locking mechanism and finger protection system protect users and specimens
  • Ergonomic design for fatigue-free working
  • Precise specimen orientation
  • Complete set of accessories
  • Waste tray included

All Slee microtomes come with a complete set of standard components along with a comprehensive selection of optional accessories to be individually adapted to the customer's sectioning needs for both biological and materials science specimens.

Specifications
Section thickness range 0 – 60μm
Section thickness settings 0 – 15μm in 1μm steps
15 – 60μm in 5μm steps
Automatic feed 0 – 60μm
Specimen feed 30mm
Maximum specimen size 50 x 70 x 20mm
Fast speed normal 3,000μm/s
Vertical stroke 72mm
Specimen orientation ± 8°
Length of cutting way 180mm
Dimensions (W x D x H) 150 x 450 x 200mm
Weight (without accessories) 18kg


Cuttec S Ordering Information
Prod # Description Unit
272450 Cuttec S Manual Sliding Microtome each
