Lithium Nickel Manganese Oxide (LNMO or LMNO), CAS number 12031-75-3, is a promising active cathode material for lithium-ion batteries (LIBs) with specific theoretical capacities up to 146.8 mAh g-1, a theoretical energy density of 650 Wh kg-1 and an operating voltage of 4.7 V. (vs. Li/Li). An LNMO cathode can be fully lithiated and delithiated during the processes of charging and discharging without any evident structural change.+
With a relatively low cost and excellent thermal stability, LNMO cathode presents great advantages over the conventional LiFePO4 and LiCoO2 cathodes. Also, as one of those cathode materials with a low nickel content, LNMO holds great potential to be deployed in hybrid electrical vehicles (HEVs).
Due to the intrinsically fast lithium cation diffusion within the three-dimensional spinel structure, N-doped LNMO cathode exhibits an impressive rate and the state-of-the-art cycling capability, delivering a high capacity of 103 mA h g-1 at 25 °C after 8000 cycles. Even at a high operating temperature of 60 °C, the capacity retention remains at 92% after 1000 cycles.
CAS Number 12031-75-3
Chemical Formula LiNi0.5Mn1.5O4
Molecular Weight 660.30 g/mol
Chemical Name Lithium Nickel Manganese Oxide
Synonyms Lithium Manganese Nickel Oxide
Classification / Family 2D semiconducting materials, Battery materials, Metal oxides, Cathode materials
Colour Black to grey powder

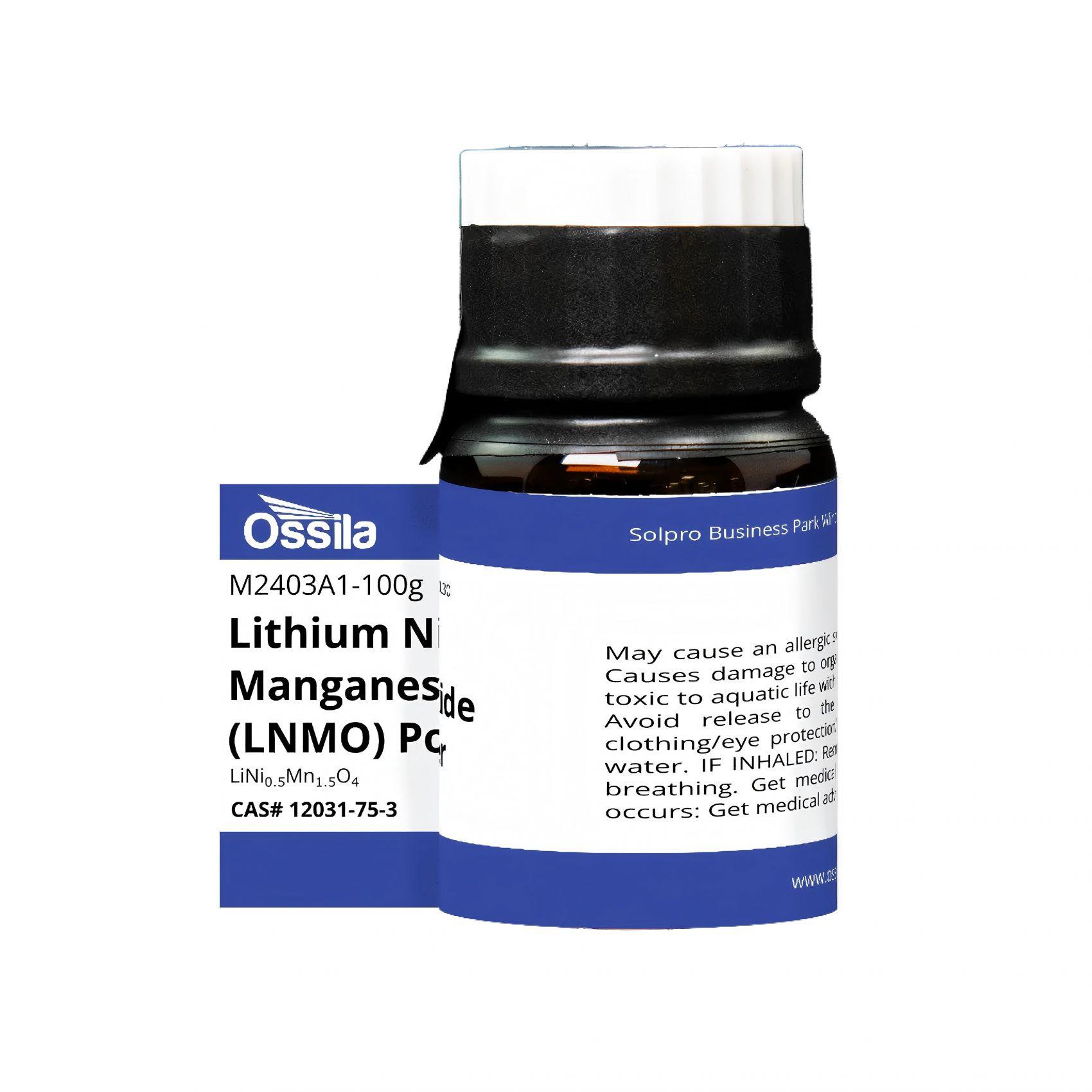

Lithium Nickel Manganese Oxide Powder
Product Code M2403A1
Li 4.0 ± 0.2%
Ni 15.1 ± 1%
Mn 44.2 ± 1.2%
BET 0.23 m2/g
Tap Density 1.78 m2/g
Compact Density 3.1 g/cm3
pH 9.22
